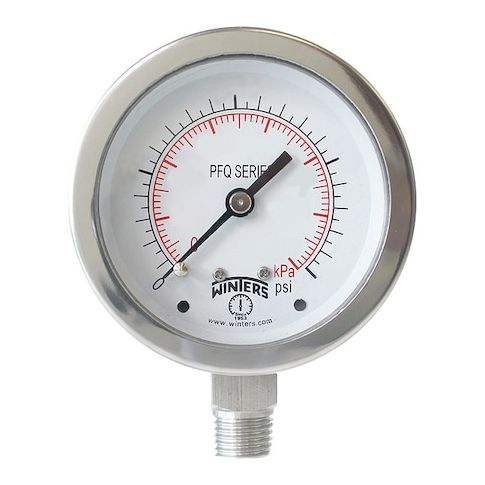

Industrial Pressure Gauge, 0 to 1, 000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location MPN:PFQ127-DRY
Industrial Pressure Gauge, 0 to 1, 000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location
This industrial pressure gauge is designed for high-accuracy measurement in demanding environments. With a 2 1/2 inch dial and 1/4 inch NPT connection, it's suitable for a wide range of applications, including oil and gas, chemical processing, and power generation. The 304 stainless steel case provides durability and resistance to corrosion, while the polycarbonate lens offers clarity and protection. Field fillable and easy to install, this gauge is ideal for use in high-pressure systems, providing reliable measurements and minimizing downtime. Its compact size and robust construction make it an excellent choice for industrial settings.
Top product features:
- 0 to 1,000 psi measurement range
- Accuracy +/-1.5 Percent
- 304 Stainless Steel gauge case material
Top product applications:
- Industrial pressure gauge suitable for use in oil and gas refineries for monitoring high-pressure pipelines.
- High-precision pressure gauge used in chemical processing plants to measure and control pressure in reactors and vessels.
- Pressure gauge used in power generation facilities to monitor and regulate pressure in steam systems and turbines.
Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-1.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 1,000, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.10
- Package Height: 1.70
- Package Weight: 0.35
Product info last updated on February 9, 2026 2:49am UTC
Category: Pressure and Vacuum Measuring
