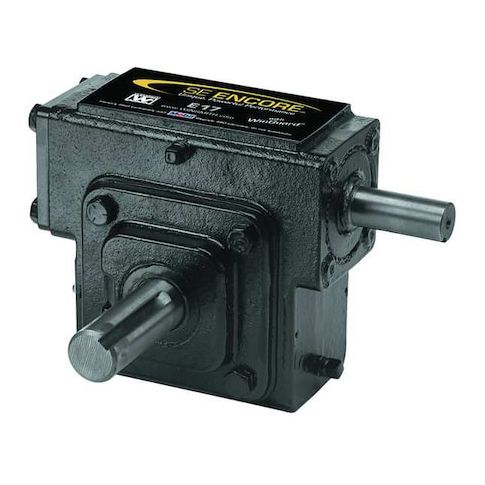

Speed Reducer, Indirect Drive, 5:1 MPN:E20XWNS, 5:1
Speed Reducer, Indirect Drive, 5:1
This high-performance Speed Reducer from Winsmith is designed for demanding applications that require precise speed reduction and torque amplification. With a gear ratio of 5:1, it can reduce input speeds to 345 RPM, providing consistent and reliable output. Suitable for use in various industries, including manufacturing, material handling, and packaging, this speed reducer is ideal for applications where precise speed control is critical. Its compact design and cast iron housing ensure durability and resistance to harsh environments, making it an excellent choice for heavy-duty operations. Its versatility and performance make it an essential component for efficient and precise machinery.
Top product features:
- Indirect drive design allows for compact and space-saving installations
- Worm gear type provides high torque and low backlash for precise control
- Round output shaft design enables easy connection to various applications
Top product applications:
- Conveyor systems for material handling
- Pump drives for industrial applications
- Gearbox replacements in food processing equipment
Speed Reducer, Input Connection Type Indirect Drive, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 345 RPM, Motor Frame Designation Solid Input Shaft, Worm Center Distance 2 in, Base to Center 2.13 in, Gear Ratio 5:1, Rotation CW/CCW, Maximum Input Horsepower 3 hp, Maximum Output Torque 518 in-lb, Overhung Load Capacity 150 lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Housing Material Finish Epoxy Coating System
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.30
- Package Width: 9.70
- Package Height: 9.60
- Package Weight: 19.70
Product info last updated on March 22, 2026 3:16am UTC
Category: Bearings, V-belts and Power Transmission Equipment
