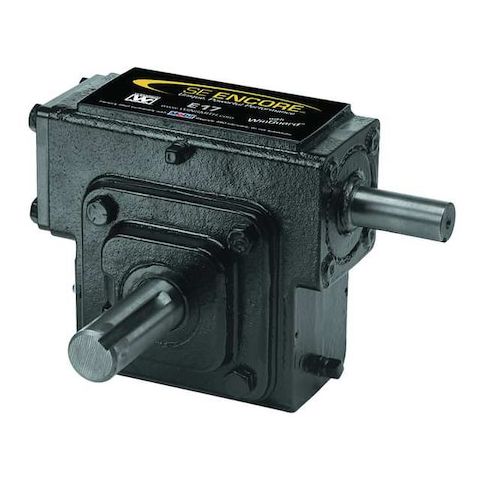

Speed Reducer, Indirect Drive, 15:1 MPN:E35XWNS, 15:1
Speed Reducer, Indirect Drive, 15:1
The Winsmith Speed Reducer is a reliable and efficient solution for reducing speed in a variety of applications. Suitable for use in any orientation, this indirect drive speed reducer features a solid input shaft and a cast iron housing with an epoxy coating system for durability. With a maximum input horsepower of 5 hp and a maximum output torque of 2542 in-lb, it is ideal for applications requiring a high level of precision and control. Common uses include material handling, packaging, and conveyor systems, where precise speed control is essential for smooth operation and reduced wear on equipment.
Top product features:
- Indirect drive design allows for smooth and quiet operation
- Worm gear type provides a high gear ratio and increased torque output
- Round output shaft enables flexible mounting options
Top product applications:
- Material Handling Equipment
- Machine Tools
- Packaging Machinery
Speed Reducer, Input Connection Type Indirect Drive, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 115 RPM, Motor Frame Designation Solid Input Shaft, Worm Center Distance 3.5 in, Base to Center 4 in, Gear Ratio 15:1, Rotation CW/CCW, Maximum Input Horsepower 5 hp, Maximum Output Torque 2542 in-lb, Overhung Load Capacity 2,130 lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Housing Material Finish Epoxy Coating System
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.10
- Package Width: 15.10
- Package Height: 15.20
- Package Weight: 78.05
Product info last updated on January 31, 2026 10:45pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
