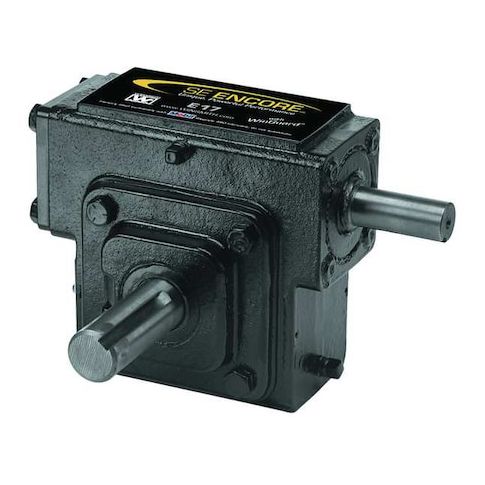

Speed Reducer, Indirect Drive, 10:1 MPN:E13XWNS, 10:1
Speed Reducer, Indirect Drive, 10:1
This versatile speed reducer from Winsmith is designed for a wide range of applications, including material handling, packaging, and automation. With a gear ratio of 10:1, it reduces input speed by a factor of ten, resulting in a maximum output speed of 172 RPM. Suitable for use with motors up to 0.75 hp, it provides a maximum output torque of 248 in-lb, making it ideal for applications requiring high torque at low speed. Its compact design and cast iron housing ensure durability and reliability, while its epoxy coating system provides a long-lasting finish.
Top product features:
- Indirect drive connection allows for flexible mounting and installation options.
- Worm gear type provides a high gear ratio in a compact design.
- Solid input shaft design enables high torque transmission and withstanding overhung loads.
Top product applications:
- Packaging machinery
- Textile machinery
- Material handling equipment
Speed Reducer, Input Connection Type Indirect Drive, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 172 RPM, Motor Frame Designation Solid Input Shaft, Worm Center Distance 1.33 in, Base to Center 1.75 in, Gear Ratio 10:1, Rotation CW/CCW, Maximum Input Horsepower 0.75 hp, Maximum Output Torque 248 in-lb, Overhung Load Capacity 150 lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Housing Material Finish Epoxy Coating System
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.20
- Package Width: 9.80
- Package Height: 9.80
- Package Weight: 12.20
Product info last updated on March 4, 2026 9:28pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
