Speed Reducer, C-Face, 56C/140TC, 20:1 MPN:E30MWSS, 20:1, 56C/140TC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0394475

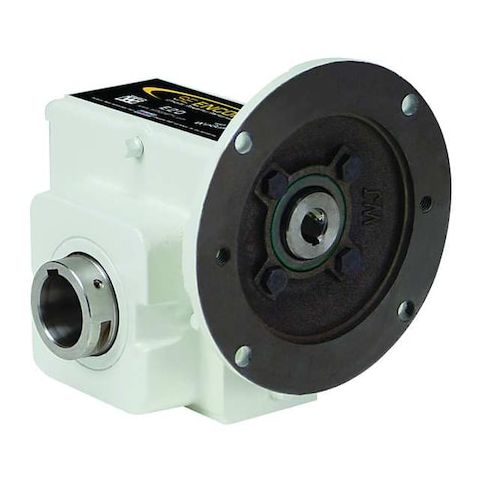

Speed Reducer, C-Face, 56C/140TC, 20:1
Elevate your industrial operations with the Winsmith 56C/140TC speed reducer, designed for heavy-duty applications. This rugged speed reducer offers a 20:1 gear ratio, reducing input speed to a manageable 86 RPM, while providing a maximum output torque of 2009 in-lb. Perfect for use in construction, manufacturing, and material handling, this speed reducer can be mounted at any angle, making it ideal for tight spaces. With a maximum input horsepower of 3 hp and overhung load capacity of 150 lb, it's built to withstand demanding environments. Increase productivity and efficiency with the Winsmith 56C/140TC speed reducer.
Top product features:
- Reduces input speed by 20:1 for increased torque
- Has a hollow output shaft for flexible mounting options
- Operates at a maximum output speed of 86 RPM for precise control
Top product applications:
- Conveyor systems
- Machine tools
- Material handling equipment
Speed Reducer, Input Connection Type C-Face, Output Shaft Type Hollow, Maximum Output Speed 86 RPM, Motor Frame Designation 56C/140TC, Worm Center Distance 3 in, Base to Center 3.5 in, Gear Ratio 20:1, Rotation CW/CCW, Maximum Input Horsepower 3 hp, Maximum Output Torque 2009 in-lb, Overhung Load Capacity 150 lb, Mounting Orientation Any Angle, Housing Material Finish Epoxy Coating System
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.80
- Package Width: 12.00
- Package Height: 12.40
- Package Weight: 60.50
Product info last updated on February 3, 2026 12:35am UTC
Category: Bearings, V-belts and Power Transmission Equipment
