Speed Reducer, C-Face, 56C, 50:1 MPN:E20MWSS, 50:1, 56C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0381053

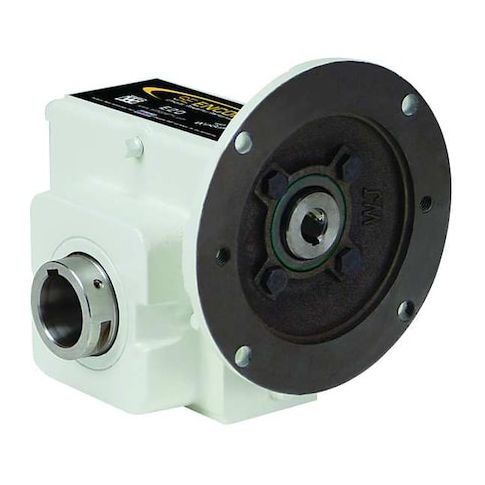

Speed Reducer, C-Face, 56C, 50:1
This C-Face speed reducer from Winsmith is designed for various applications requiring precise speed reduction. With a gear ratio of 50:1, it can reduce input speeds to 35 RPM, making it suitable for use in industries such as packaging, material handling, and automation. The unit's compact design and epoxy coating system ensure durability and resistance to wear. Its hollow output shaft and overhung load capacity of 150 lb make it ideal for use with motors and other equipment. Benefits include increased efficiency, reduced noise, and improved system stability, making it a reliable solution for a wide range of applications.
Top product features:
- C-Face input connection allows for direct mounting to a motor
- Hollow output shaft reduces the risk of jamming and allows for easier installation of a coupling or other attachment
- 50:1 gear ratio provides a high level of speed reduction, ideal for applications requiring low output speeds
Top product applications:
- Material Handling Equipment
- Conveyor Systems
- Packaging Machines
Speed Reducer, Input Connection Type C-Face, Output Shaft Type Hollow, Maximum Output Speed 35 RPM, Motor Frame Designation 56C, Worm Center Distance 2 in, Base to Center 2.13 in, Gear Ratio 50:1, Rotation CW/CCW, Maximum Input Horsepower 0.5 hp, Maximum Output Torque 706 in-lb, Overhung Load Capacity 150 lb, Mounting Orientation Any Angle, Housing Material Finish Epoxy Coating System
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.10
- Package Width: 9.70
- Package Height: 9.80
- Package Weight: 27.40
Product info last updated on March 11, 2026 12:43pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
