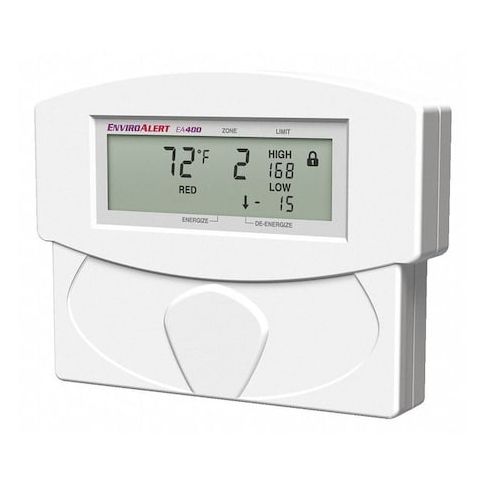

Temperature Alarm, 0 to 2 hr. Delay MPN:EA400-12

The EnviroAlert® EA400-12 critical-environment monitoring device provides visibility to four environmental zones(areas) to monitor for temperature, humidity and/or water presence. In addition to the local (on device) visual and audible (Piezo buzzer required – 3rd party buzzer add on) notifications, when integrated to a security panel the system allows for the real-time notification of an incident and immediate corrective action.

• • Simultaneous operation of four sensors with easy to read LCD display and tamper proof lock setting.
• • 8 event incident memory, including time and date with auxiliary output relay for local audible alarm(not included) with alarm silence feature with 10 minute timer and up to 120 minute alarm time delay programable for each zone.
• • Do NOT place EA400-12 into cooler/freezer environments. Use a wired sensor connected to the EA400-12.
• • Adjust sensor reading with offset up to ±9.0
• • Power requirements of 12V DC @ 120mA
• • No on-board temperature sensor
• • Unit operating range of 32 to 122 °F (0 to 50 °C) in non-condensing environment
• • Sensor dependent low limit and high limit adjustment range of -58 to +302 °F (-50 to +150 °C)
• • 4 configurable Form C (SPDT) alarm output relays (N.O./N.C.) and 1 non-configurable Form C (SPDT) auxiliary alarm output relay (N.O./N.C.)
