Water Detection Systm, 8 to 28 VAC/DC MPN:WB-200
Free Shipping
In Stock
Protect your assets from water damage with the WaterBug 200, a reliable water detection device ideal for computer rooms, document storage areas, warehouses, sump pumps, and basements. This hard-wired device monitors for the presence or absence of water, providing peace of mind and safeguarding your valuable equipment and inventory. With its wide range of protection and flexibility to accommodate up to six sensors, the WaterBug 200 is a must-have for any facility where water damage is a concern. Its compact design and easy installation make it a hassle-free solution for ensuring a dry and safe environment.
Top product features:
- Monitors for the presence of water and can be used to detect the absence of water.
- Accepts up to six total sensors, allowing for a wide area of protection.
- Can be powered with 8 to 28V DC or 12 to 28V AC, providing flexibility in power supply options.
Top product applications:
- Computer rooms
- Document storage areas
- Sump pumps

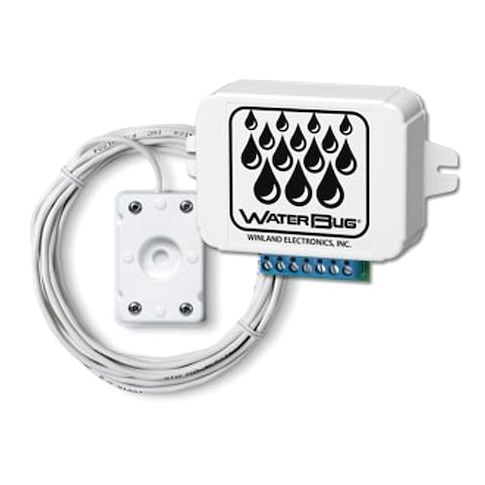

The WaterBug® 200 ("WB200") is a water detection device ideal for computer rooms, document storage areas, warehouses, sump pumps and basements. WaterBug sensors activate the alarm when a conductive bridge is formed between 2 contacts. Protect your assets with the WB200.
- • Monitors for the presence of water. Can be used to detect the absence of water.
- • Device includes one standard unsupervised surface sensor (W-S-U).
- • Device accepts up to six total sensors (W-S-U). Additional sensors (W-S-U) sold separately.
- • 1 to 2 sensors can be located up to 200' (60.96m) or 3 to 6 sensors can be located up to 100' (30.48m) away from the device for a wide area of protection. Use 18-22 AWG twisted pair wire for extension of sensors from the device.
- • Hard wire powered device. Ensure that the power running to the device does NOT have a connection to earth ground. This could result in a failure to detect water or ground fault.
- • Power requirements of 8 to 28V DC at 35mA or 12 to 28 V AC at 100mA
- • Unit operating range of 32 to 130 °F (0 to 54 °C) in non-condensing environment. Indoor use only.
- • Output is 1 Form C (N.O./N.C.) with 30V DC at 1 Amp resistive/24V AC at 1 Amp resistive
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.75
- Package Width: 5.50
- Package Height: 2.13
- Package Weight: 0.65
