Tradesman Bench Vise, 6-1/2" Jaw Width, 6" Jaw Opening, 4" Throat Depth MPN:1765

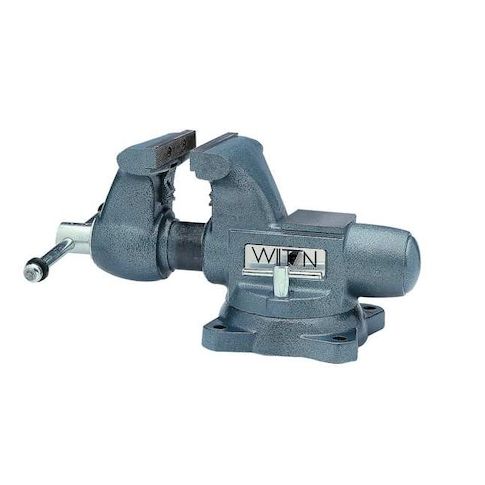

The WILTON 1765 is a bench-mounted combination vise with a 6-1/2 in jaw width and 6 in maximum jaw opening for clamping flat stock and pipe. It features a round channel design with an enclosed spindle and nut assembly that helps keep lubrication in and debris out during operation. The rear-anchored spindle nut provides straight-line pull and even pressure. This vise also includes serrated main jaws, integrated pipe jaws, and a machined anvil work surface for forming and shaping materials.

Key Features of the WILTON 1765 Combination Vise:

• Body material: Ductile iron body with cast construction and 60,000 psi tensile strength.
• Swivel base: 360-degree swivel base allows repositioning of the vise on the bench.
• Jaw configuration: 6-1/2 in serrated, replaceable jaws with hardened steel jaw pads.
• Jaw capacity: Opens to 6 in maximum with a 5 in throat depth.
• Pipe clamping: Includes pipe jaws for pipe sizes from 3/8 in to 4 in.
• Enclosed spindle: Enclosed spindle design helps keep contaminants out and lubrication in.
• Spindle assembly: Longer spindle nut and redesigned spindle assembly support smooth movement and straight-line pull.
• Front jaw support: Precision slide bar reduces movement in the front jaw through the opening range.
• Anvil surface: Large machined anvil provides a work surface for forming and shaping materials.
• Mounting: Four mounting holes with 5/8 in hole diameter and 2 lock down bolts.
