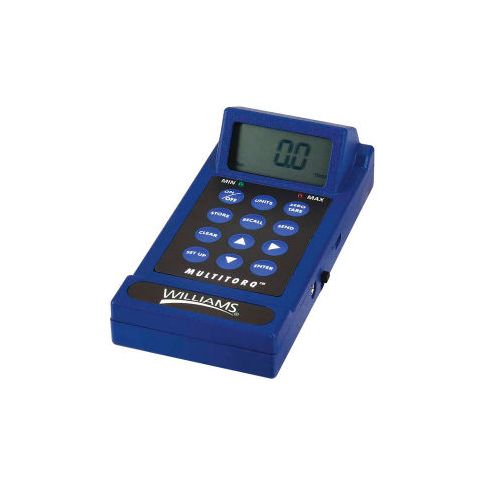

Williams® Multitorq Torque & Data Collection System 10-1500 lb-ft 1600-MT2W

Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" the multitorq portable electronic torque meter displays torque readings from sensors that attach between sockets and driver multitorq is a highly versatile torque analyzer/data acquisition system that can be used with sockets extensions universal joints ratcheting drivers or any combination of these accuracy ± 1% of reading (± 2% reading for 20 in. Oz. And 10 in. Lb.) 10-100% of sensor range the torque analyzer features a wide angle viewing lcd display with selectable readouts; ft. Lb. In. Lb. In. Oz. Nm dnm mkg and cmkg units torque target settings are entered via a push button membrane keyboard high and low torque limits are adjustable to give an audible and visual alarm the user selects track mode to display torque values as they are applied or peak mode to display the highest torque value applied. 4 digit with alpha & numerical function flags 4 digit 8000 counts display capacity accuracy ± 1% of indicated value cw & ccw from 10% to 100% of full scale 201-o-mt and 101-i-mt are ± 2% soft-touch keys hi/lo alarm zero tare set-up units store/recall/clear send statistics enter units of measurement ft. Lb. In. Lb. In. Oz. Nm dnm mkg and cmkg storage -20 to 50 degrees c (-2 to 122 degrees f) humidity up to 90% non-condensing dimensions 3" wide 2.5" high (3" with belt clip) 6" deep weight 1 pound charge life (full charge to shutoff) 20 hours continuous battery chargers 120 vac optional 220 volt charger available output 9vdc 200ma data storage/recall 3500 measurements serial output port rs-232 (true) 300-19.2k baud and mitutoyo (statistical protocol) rechargeable ni-cad batteries reads bi-directionally (cw and ccw)

Additional Information
