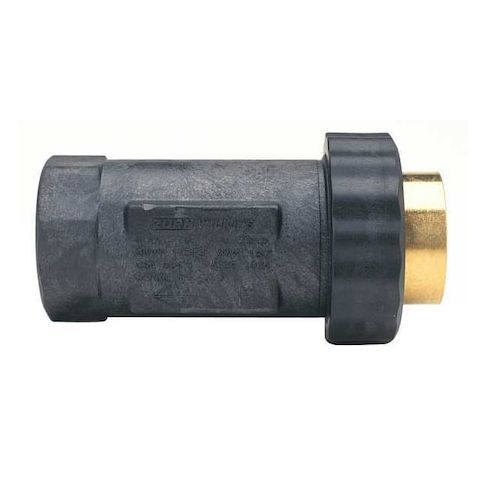

Dual Check Valve, 705 Series, 1 in, Union FNPT x FNPT, Reinforced Nylon MPN:1UFX1F-705
Free Shipping
In Stock
The Wilkins Dual Check Valve is a reliable and efficient solution for various applications, including water treatment, irrigation, and plumbing systems. Its composite construction and nylon body ensure durability and resistance to corrosion, while its 1-inch FNPT connection makes installation straightforward. With a maximum temperature of 180 degrees and pressure of 175 psi, this valve meets the standards of ASSE 1012, CSA, and NSF/ANSI/CAN 61. Its compact size of 4.5 inches in length makes it ideal for use in tight spaces. By preventing backflow and ensuring a safe water supply, this valve provides peace of mind for professionals and homeowners alike.
Top product features:
- Dual check valve design prevents backflow in water distribution systems
- Composed of nylon for resistance to corrosion and chemical damage
- Operates at a maximum temperature of 180 degrees Fahrenheit
Top product applications:
- Drainback Systems
- Potable Water Systems
- Well Water Systems
WILKINS 705 is a 1 in. dual check valve with two internal check valves in series for reverse-flow control in water lines. It features an inline composite body made of reinforced nylon and lead-free composite with FNPT x FNPT union connections for general-purpose water service applications with reverse-flow control requirements.
Key Features:
- Dual check design: Two internal check valves in series with two check valves in series for reverse-flow control.
- Size and connections: 1 in. nominal valve size with female NPT connections on both ends
- FNPT x FNPT union connection.
- Body material: Composite construction with reinforced nylon and lead-free composite material.
- Media and application: For water
- general-purpose application.
- Pressure and temperature: 175 psi maximum operating pressure
- operating temperature range 33 degrees F to 180 degrees F.
- Flow rating: 40 gpm.
- Installation: Inline body design for horizontal or vertical mounting.
- Internal materials: Buna-N seal, Delrin seat, and stainless steel spring.
- Hazard protection level: Low Health Hazard.
- Standards: ASSE 1012, CSA, NSF/ANSI/CAN 61.
- Overall size: 4.5 in. length, 2.19 in. height, 2.18 in. width.
- Field testable: No.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 5.60
- Package Height: 2.60
- Package Weight: 0.55
