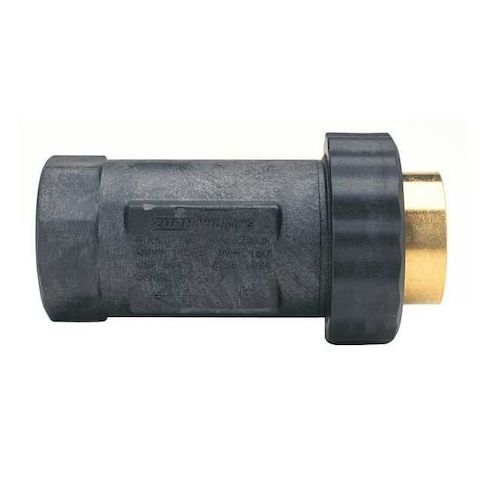

1" Union Female Meter x 3/4" FNPT Dual Check Valve MPN:1UFMX34F-705
Free Shipping
In Stock
This 1in Union Female Meter x 3/4in FNPT Dual Check Valve from Wilkins is a reliable and efficient solution for various applications. It's designed to prevent backflow and contamination in water supply systems, making it ideal for residential and commercial use. Its nylon body and high-temperature rating (up to 180°F) ensure durability and long service life. The valve meets strict standards such as ASSE 1012, CSA, and NSF/ANSI/CAN 61, giving you peace of mind. Perfect for use in water treatment plants, hospitals, and other critical facilities, this valve provides a safe and reliable water supply.
Top product features:
- Dual Check Valve functionality provides backflow protection
- Union Female Meter x FNPT connection allows for flexible installation options
- Max. Temp. of 180 Degrees allows for use in high-temperature applications
Top product applications:
- Backflow prevention in residential water systems
- Drinking water treatment and distribution systems
- Industrial processes requiring precise pressure control
WILKINS 1UFMX34F-705 is a dual check valve for general-purpose water service, with two check valves in series for backflow prevention applications. This inline valve has a 1 in union female meter connection on one side and a 3/4 in FNPT connection on the other, for installations with these specified connection types and sizes.
Key Features:
- Dual check valve design includes two independent checks in series for backflow prevention applications.
- Connection size: 1 in x 3/4 in.
- Connection type: union female meter x FNPT.
- Female connections on both ends.
- Body material: reinforced nylon composite
- material of construction: lead-free composite.
- Seal material: Buna-N
- seat material: Delrin
- spring material: stainless steel.
- Flow rating: 40 gpm.
- Maximum pressure: 175 psi.
- Operating temperature range: 33 degrees F to 180 degrees F.
- Mounting orientation: horizontal or vertical.
- Inline body design.
- Hazard protection level: low health hazard.
- Not field testable.
- Standards: ASSE 1012, CSA, NSF/ANSI/CAN 61.
- Overall dimensions: 4.5 in L x 2.19 in H x 2.18 in W.
- Valve series: 705.
