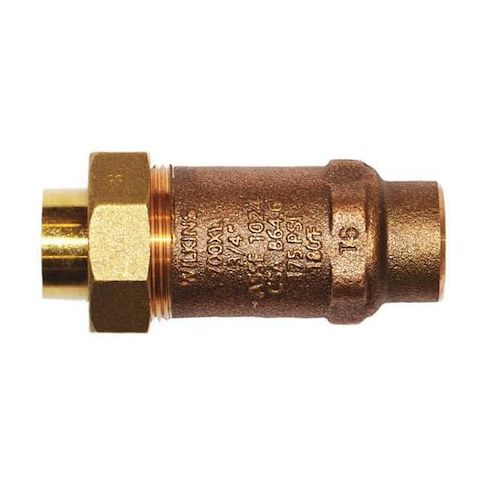

Dual Check Valve, 700XL Series, 1 in, Union FNPT x FNPT, Bronze MPN:1UFX1F-700XL

WILKINS 700XL is a 1 in dual check valve for use in water line backflow prevention applications. It features two independent check valves in series, a low lead bronze body, and female NPT threaded connections on both ends. This inline valve is intended for low health hazard applications and is rated for horizontal or vertical installation, with a 40 gpm flow rate, 175 psi maximum operating pressure, and an operating temperature range of 33 to 180 degrees F.

Key Features:

• Dual check design with two check valves in series for one-way flow control
• 1 in FNPT x FNPT connections with female NPT threads on both sides
• Cast bronze body meeting ASTM B584
• Low lead bronze material of construction
• Inline body design for general purpose water service
• Seat material: Delrin
• Spring material: stainless steel
• 175 psi maximum operating pressure
• Operating temperature range: 33 to 180 degrees F
• Flow rate: 40 gpm
• Rated for horizontal or vertical installation
• Standards: ASSE 1012, CSA, NSF/ANSI/CAN 61
• Overall dimensions: 4-1/2 in L x 2 in H x 2 in W
