Oil and Water Separator, WSA Series, 1/4 in NPT, 25 cfm, 200 psig MPN:WSA-02-FM0
Oil and Water Separator, WSA Series, 1/4 in NPT, 25 cfm, 200 psig

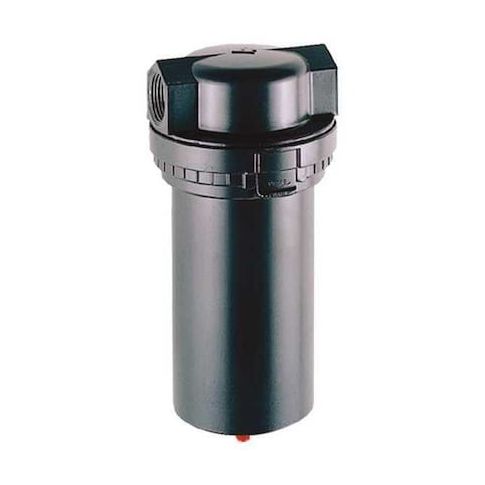

The WILKERSON WSA-02-FM0 is an oil and water separator that is intended for use in pneumatic air systems and is rated to separate oil aerosols and condensate from compressed air. It has 1/4 in NPT air inlet and outlet ports, accommodating a maximum flow rate of 25 cfm and has a maximum operating pressure of 200 psig. The separator has an operating temperature range of 32°F to 150°F.
Key Features:
- - Fits brand: Wilkerson
- - Air inlet size and type: 1/4 in NPT
- - Air outlet size and type: 1/4 in NPT
- - Oil outlet size and type: 1/8 in NPT
- - Water outlet size and type: 1/8 in NPT
- - Maximum operating pressure: 200 psig
- - Maximum flow rate: 25 cfm
- - Operating temperature range: 32 Degrees F minimum to 150 Degrees F maximum
- - Overall dimensions: 6 3/8 in height by 3 in width
- - Part of the WSA series
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.80
- Package Width: 3.60
- Package Height: 3.30
- Package Weight: 2.30
Product info last updated on February 21, 2026 10:45am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
