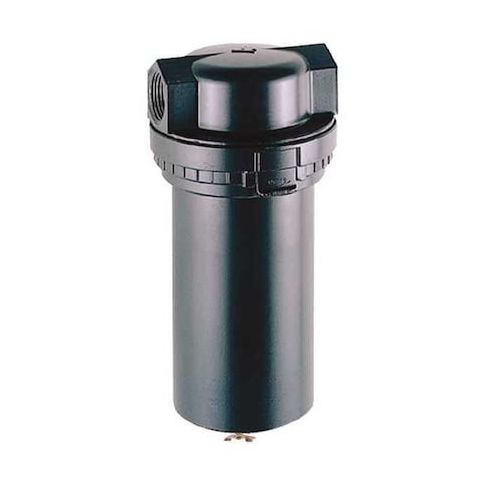

Oil and Water Separator, WSA Series, 3/4 in NPT, 100 cfm, 200 psig MPN:WSA-06-M00
The Wilkerson Liquid Separator 3/4In is a versatile and reliable solution for separating oil and water in various industrial applications. This compact separator can handle maximum flow rates of 100 cfm, making it suitable for use in air compressors, HVAC systems, and other equipment that generates condensate. By efficiently separating oil and water, the separator helps reduce maintenance costs, prolong equipment life, and minimize environmental impact. Its compact design and NPT connections make it easy to integrate into existing systems, making it an ideal choice for applications in industries such as manufacturing, construction, and energy.
Top product features:
- Separates oil and water from air
- Has a maximum flow rate of 100 cfm
- Operates at pressures up to 200 psig and temperatures up to 150 Degrees F
Top product applications:
- Fuel Tank Drainage System
- Industrial Oil and Water Separation
- Automotive Oil Change Facilities
The WILKERSON WSA-06-M00 is intended to separate oil aerosol and condensate from compressed air within the specified operating conditions. It connects to pneumatic setups using 3/4 in NPT inlet and outlet ports and is rated for airflow up to 100 cfm. The separator is rated for operation up to 200 psig and is rated for operation at 32 to 150 °F, for separating oil aerosol and condensate from the air stream under the specified operating conditions.
Key Features:
- - Air inlet size and type: 3/4 in NPT
- - Air outlet size and type: 3/4 in NPT
- - Oil outlet size and type: 1/8 in NPT
- - Water outlet size and type: 1/8 in NPT
- - Maximum flow rate: 100 cfm
- - Maximum operating pressure: 200 psig
- - Operating temperature range: 32 to 150 °F
- - Overall dimensions: 10 in height by 4 9/16 in width
- - Model series: WSA
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.01
- Package Width: 0.01
- Package Height: 0.01
- Package Weight: 0.01
