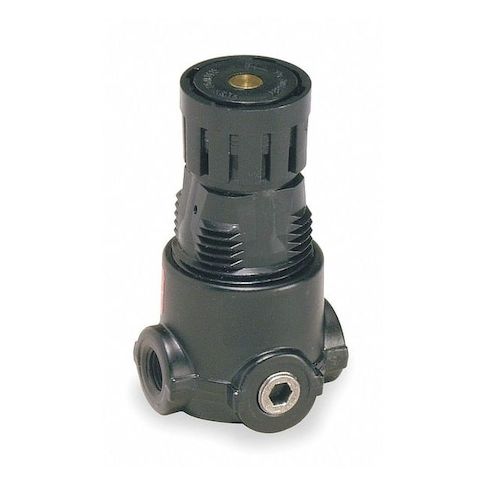

Air Regulator, 1/4 In. NPT, 15 cfm, 300 psi MPN:R03-02-000
Air Regulator, 1/4 In. NPT, 15 cfm, 300 psi
This Wilkerson Air Regulator is designed for precise control of compressed air in various industrial applications. Its compact 1/4 in. NPT design allows for easy integration into air lines, making it ideal for use in manufacturing, assembly, and testing environments. The regulator's adjustable mechanism enables users to set the maximum flow rate to 15 scfm and operating pressure to 300 psi, ensuring optimal performance in applications such as pneumatic tools, air cylinders, and pneumatic conveying systems. With a maximum operating temperature of 125°F, this regulator is suitable for a wide range of industrial uses.
Top product features:
- Maximum Flow Rate of 15 scfm
- Maximum Operating Pressure of 300 psi
- Regulates Pressure to a Maximum of 125 psi
Top product applications:
- Air Pressure Gauge for Industrial Equipment
- Air Supply Regulator for Laboratory Equipment
- Compressed Air System for Medical Equipment
Compressed Air Regulator, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 15 scfm, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 125 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 1 9/16 in, System Location Air Line, Series R03, Adjustment Mechanism Material Steel, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Zinc, Maximum Regulated Pressure 125 psi
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.90
- Package Height: 4.40
- Package Weight: 0.43
Product info last updated on March 12, 2026 3:55am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
