Indexable Profiling End Mill, M200 Series, High Speed Steel, 5.00mm Depth of Cut MPN:5283434
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3803333

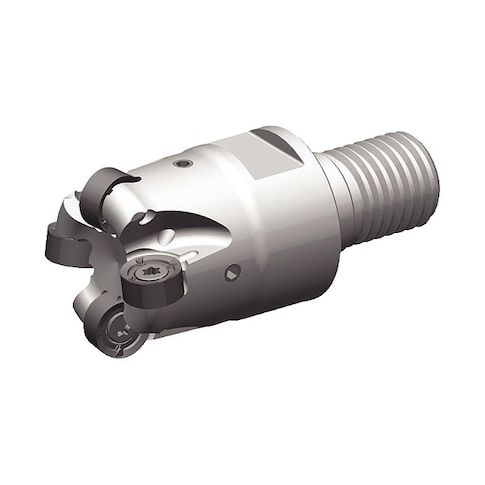

Indexable Profiling End Mill, M200 Series, High Speed Steel, 5.00mm Depth of Cut
The Widia M200 Series Indexable Profiling End Mill is a high-speed steel cutting tool designed for demanding machining applications. Its 5.00mm depth of cut and 32.00mm maximum cutting diameter enable precise 3D profiling, face milling, pocketing, and side/shoulder milling, including ball nose and square end slotting. The tool's coolant-fed design ensures efficient chip removal and extended tool life. With a variety of applications in industries such as aerospace, automotive, and medical device manufacturing, this end mill is a valuable addition to any machining operation. Its compact size and high-performance capabilities make it an ideal choice for complex machining tasks.
Top product features:
- High Speed Steel construction for improved tool life and durability
- Coolant Fed Coolant Through design for efficient heat management and chip removal
- Ball Nose cutting capability for precise 3D profiling and curved surface machining
Top product applications:
- 3D Profiling
- Face Milling
- Pocketing
Indexable Profiling End Mill, Max. Cutting Dia. 32.00mm, Depth of Cut 5.00mm, Shank Dia. 29.00mm, ANSI Code M200D125Z04M16RN10, Compatible Hardware Insert Screw M3.5x0.6 x 8.3 T15, Torx Wrench TX15, Connection Size M16, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.45
- Package Width: 7.09
- Package Height: 3.35
- Package Weight: 0.38
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 2, 2026 4:24pm UTC
Category: Cutting Tools
