Indexable Profiling End Mill, M170 Series, High Speed Steel, 6.00mm Depth of Cut MPN:3930954
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3802685

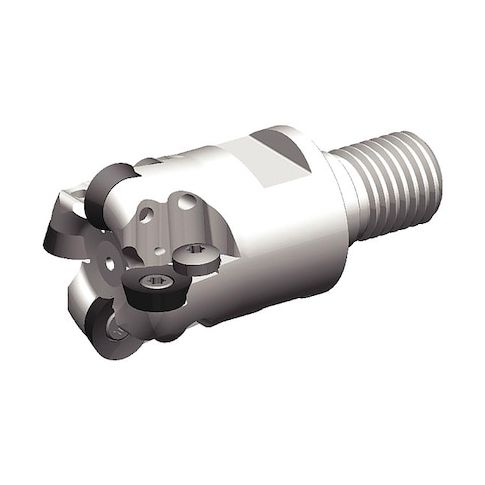

Indexable Profiling End Mill, M170 Series, High Speed Steel, 6.00mm Depth of Cut
Elevate your machining capabilities with the Widia Indexable Profiling End Mill, M170 Series. This high-speed steel tool is designed for efficient 3D profiling, face milling, helical milling, pocketing, and ramping applications. Its ball nose design excels in side/shoulder milling and slotting, while its square end is ideal for slotting. The M170 Series is compatible with a range of hardware inserts and features a coolant-fed design for optimal performance. With its versatility and precision, this end mill is a valuable addition to any machining operation, enabling faster production times, improved accuracy, and enhanced product quality.
Top product features:
- High Speed Steel construction for durability and long tool life
- Coolant fed design for efficient heat dissipation and improved cutting performance
- Ball Nose end design for precise edge profiling and surface finish
Top product applications:
- 3D Profiling
- Face Milling
- Helical Milling
Indexable Profiling End Mill, Max. Cutting Dia. 35.00mm, Depth of Cut 6.00mm, Shank Dia. 29.00mm, Overall Length 67.50mm, ANSI Code M170D035Z03M16RD12, Compatible Hardware Insert Screw M3.5x0.6 x 7.7 T15, Torx Driver, Connection Size M16, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 39 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.54
- Package Width: 1.97
- Package Height: 1.97
- Package Weight: 0.51
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 4, 2026 9:21pm UTC
Category: Cutting Tools
