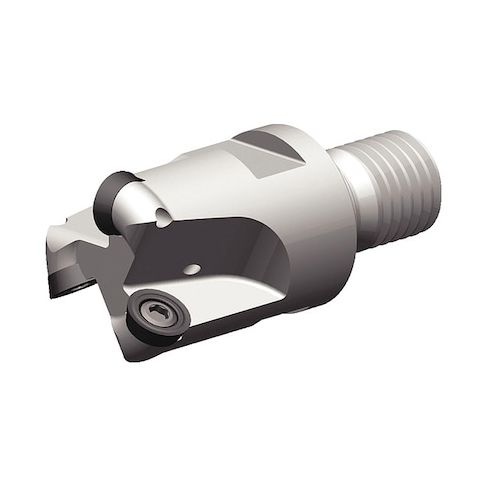

Indexable Profiling End Mill, M100 Series, High Speed Steel, 5.00mm Depth of Cut MPN:2021375
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3802590
Indexable Profiling End Mill, M100 Series, High Speed Steel, 5.00mm Depth of Cut
The M100 Series Indexable Profiling End Mill from Widia is a high-speed steel cutting tool designed for efficient 3D profiling, face milling, helical milling, pocketing, and ramping applications. Its ball nose design enables precise side and shoulder milling, while its square end configuration facilitates slotting. With a maximum cutting diameter of 25mm and a depth of cut of 5mm, this end mill offers versatility and accuracy in a wide range of machining operations. Its compact design and through-coolant capabilities ensure optimal performance and extended tool life, making it an ideal choice for demanding manufacturing applications.
Top product features:
- Indexable Profiling End Mill is designed for 3D Profiling, Face Milling, Helical Milling, Pocketing, and Ramping applications.
- The product features a Ball Nose design for Side/Shoulder Milling.
- The tool is equipped with a Coolant Fed Coolant Through design.
Top product applications:
- 3D Profiling
- Face Milling
- Helical Milling
Indexable Profiling End Mill, Max. Cutting Dia. 25.00mm, Depth of Cut 5.00mm, Shank Dia. 22.00mm, Overall Length 52.00mm, ANSI Code 12391050400, Compatible Hardware Insert Screw M3.5x0.6 x 6.5 T15, Torx Wrench, Connection Size M12, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 67 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.54
- Package Width: 1.57
- Package Height: 1.57
- Package Weight: 0.18
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on April 18, 2026 7:15am UTC
Category: Cutting Tools
