Indexable Profiling End Mill, M200 Series, High Speed Steel, 5.00mm Depth of Cut MPN:5210307
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3802283

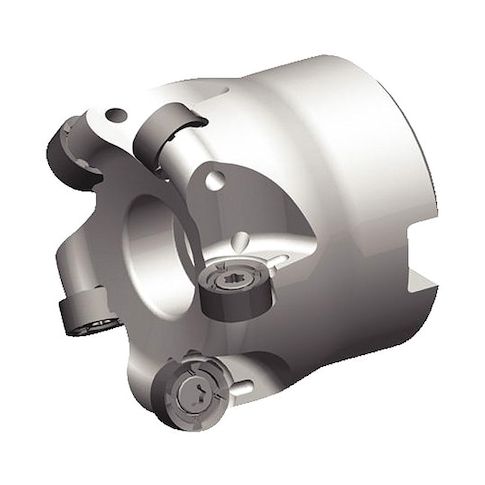

Indexable Profiling End Mill, M200 Series, High Speed Steel, 5.00mm Depth of Cut
The Widia Indexable Profiling End Mill is a high-speed steel cutting tool designed for demanding applications. With a maximum cutting diameter of 50mm and a depth of cut of 5mm, it excels in 3D profiling, face milling, pocketing, and side and face milling. The tool's ball nose and square end capabilities make it ideal for slotting and side/shoulder milling. Its compact design and coolant-fed system ensure efficient cutting and reduced heat buildup. The M200 series end mill is perfect for industries requiring high precision and accuracy, such as aerospace, automotive, and medical device manufacturing.
Top product features:
- Indexable Profiling End Mill with a maximum cutting diameter of 50.00mm
- Indexable Profiling End Mill suitable for 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
- Indexable Profiling End Mill designed for coolant-fed coolant through operation
Top product applications:
- 3D Profiling
- Face Milling
- Pocketing
Indexable Profiling End Mill, Max. Cutting Dia. 50.00mm, Depth of Cut 5.00mm, Overall Length 40.00mm, ANSI Code M200D50Z05RN10, Compatible Hardware Anti-Seize Lubricant, Coolant Screw, Insert Screw M3.5x0.6 x 8.3 T15, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.94
- Package Width: 2.36
- Package Height: 2.36
- Package Weight: 0.71
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 7, 2026 7:31pm UTC
Category: Cutting Tools
