Indexable Profiling End Mill, M100 Series, High Speed Steel, 6.00mm Depth of Cut MPN:2021379
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3801714

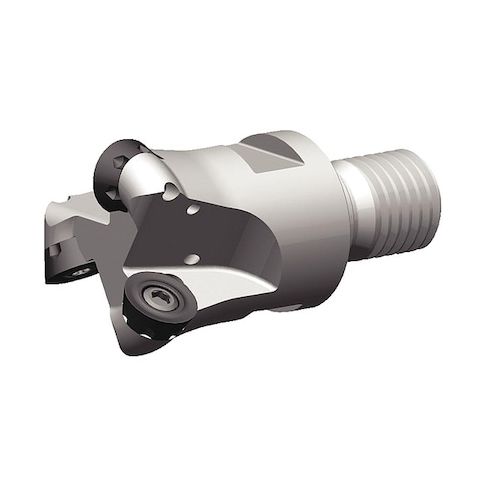

Indexable Profiling End Mill, M100 Series, High Speed Steel, 6.00mm Depth of Cut
The M100 Series Indexable Profiling End Mill from Widia is a high-speed steel cutting tool designed for demanding machining applications. With a maximum cutting diameter of 40mm and a depth of cut of 6mm, it excels in 3D profiling, face milling, helical milling, pocketing, and ramping operations. Its ball nose design allows for precise side/shoulder milling and slotting. The tool's coolant-fed design ensures efficient chip removal and extended tool life. Suitable for various industries, it delivers high precision and surface finish, making it an ideal choice for manufacturers seeking to improve productivity and quality.
Top product features:
- High Speed Steel construction for increased durability and resistance to wear
- Capable of 3D Profiling, Face Milling, Helical Milling, Pocketing, and Ramping operations
- Equipped with a Coolant Fed design for improved heat management and reduced tool wear
Top product applications:
- 3D Profiling
- Face Milling
- Helical Milling
Indexable Profiling End Mill, Max. Cutting Dia. 40.00mm, Depth of Cut 6.00mm, Shank Dia. 28.00mm, Overall Length 63.00mm, ANSI Code 12391051200, Compatible Hardware Insert Screw M3.5x0.6 x 8.9 T15, Torx Wrench, Connection Size M16, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 67 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.54
- Package Width: 1.57
- Package Height: 1.57
- Package Weight: 0.44
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 9, 2026 3:58pm UTC
Category: Cutting Tools
