Indexable Profiling End Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut
The Widia M1200 Series Indexable Profiling End Mill is a high-performance tool designed for demanding face milling, side milling, and side/shoulder milling applications. Its 3.50mm depth of cut and 133.71mm maximum cutting diameter enable efficient material removal, while the high-speed steel construction ensures durability and resistance to wear. Compatible with coolant systems, this end mill enhances machining productivity and accuracy. Ideal for use in various industries, including aerospace, automotive, and general manufacturing, it offers a cost-effective solution for complex profiling operations, reducing production time and increasing overall efficiency.
Top product features:
- Indexable Profiling End Mill can be used for Face Milling, Side and Face Milling, and Side/Shoulder Milling.
- The product features a Cutting Application of Eased Chamfer.
- The tool is equipped with a Coolant Fed Coolant Through system.
Top product applications:
- Face Milling
- Side and Face Milling
- Side/Shoulder Milling: Eased Chamfer

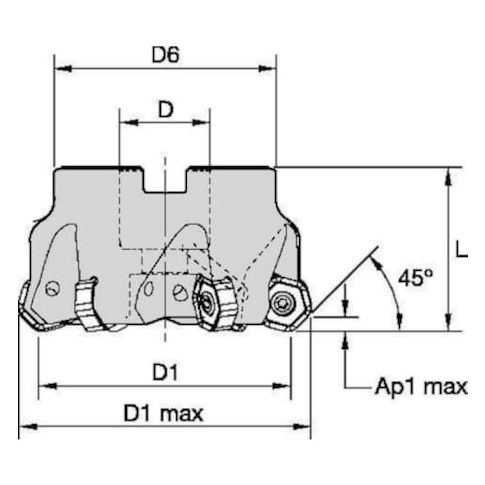

Indexable Profiling End Mill, Max. Cutting Dia. 133.71mm, Depth of Cut 3.50mm, Overall Length 63.00mm, ANSI Code M1200D125Z08HN07, Compatible Hardware Anti-Seize Lubricant, Coolant Shower Plate, Coolant Spann Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 67 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.96
- Package Width: 11.02
- Package Height: 3.54
- Package Weight: 6.26
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 4, 2026 4:16pm UTC
Category: Cutting Tools
