Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.1560 in Depth of Cut MPN:5283522
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3801452

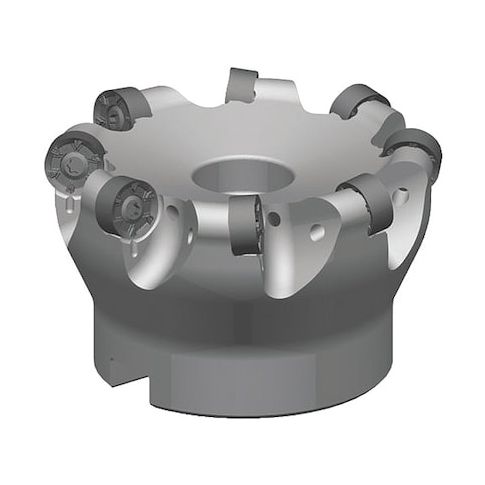

Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.1560 in Depth of Cut
The Widia M200 Series Indexable Profiling End Mill is a high-speed steel cutting tool ideal for 3D profiling, face milling, pocketing, and side milling applications. Its robust design and advanced features allow for efficient cutting and reduced tool wear. The mill's 0.1560 in depth of cut and 2-1/2 in maximum cutting diameter enable precise control and versatility. Compatible with anti-seize lubricant and coolant-fed systems, this tool is designed for optimal performance and longevity. Suitable for a variety of industries, including aerospace, automotive, and manufacturing, the M200 Series End Mill is a reliable and effective solution for complex cutting tasks.
Top product features:
- High Speed Steel construction for durability and long tool life
- Cuts a maximum diameter of 2-1/2 inches for versatility in various applications
- Compatible with coolant through for efficient heat management and extended tool life
Top product applications:
- 3D Profiling
- Face Milling
- Pocketing
Indexable Profiling End Mill, Max. Cutting Dia. 2-1/2 in, Depth of Cut 0.1560 in, Overall Length 2 in, ANSI Code M200D250Z05S100RN16, Compatible Hardware Anti-Seize Lubricant, DT20 Torx Screwdriver Tx20, Insert Screw M4.5x0.75 x 14 T20, SHCS with Coolant Groove, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.65
- Package Width: 7.09
- Package Height: 3.35
- Package Weight: 2.65
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 13, 2026 10:33am UTC
Category: Cutting Tools
