Indexable Profiling End Mill, M1200 Series, High Speed Steel, 4.70mm Depth of Cut MPN:4136872
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3801419
Indexable Profiling End Mill, M1200 Series, High Speed Steel, 4.70mm Depth of Cut
The Widia M1200 Series Indexable Profiling End Mill is a high-speed steel cutting tool designed for efficient face milling, side milling, and side/shoulder milling applications. Its 4.70mm depth of cut and 131.74mm maximum cutting diameter enable precise control and versatility. This end mill is ideal for machining large parts, such as engine blocks and cylinder heads, where high stock removal rates and precise finishes are required. With its anti-seize lubricant and coolant shower plate, this tool minimizes tool wear and maximizes productivity, reducing machining time and increasing overall efficiency. Its compact design also makes it suitable for use in tight spaces.
Top product features:
- Indexable design allows for quick and easy tooling changes
- Suitable for use in face milling, side and face milling, and side/shoulder milling applications
- Equipped with coolant-fed coolant through for improved cutting performance and reduced heat buildup
Top product applications:
- Face Milling
- Side and Face Milling
- Side/Shoulder Milling: Eased Chamfer

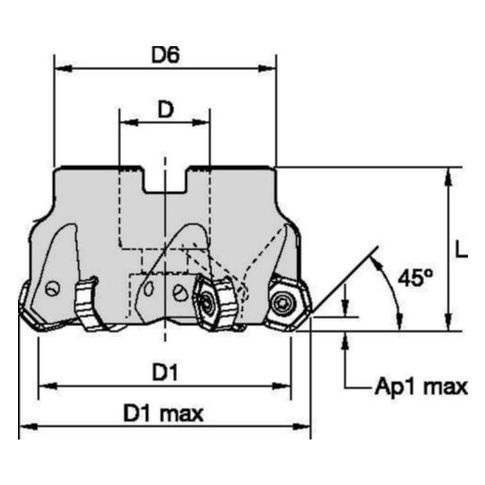

Indexable Profiling End Mill, Max. Cutting Dia. 131.74mm, Depth of Cut 4.70mm, Overall Length 63.00mm, ANSI Code M1200HD125Z08HN07, Compatible Hardware Anti-Seize Lubricant, Coolant Shower Plate, Coolant Spann Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 67 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.35
- Package Width: 11.02
- Package Height: 3.15
- Package Weight: 6.31
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 9, 2026 12:16pm UTC
Category: Cutting Tools
