Indexable Profiling End Mill, M170 Series, High Speed Steel, 3.50mm Depth of Cut MPN:3926607
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3801260

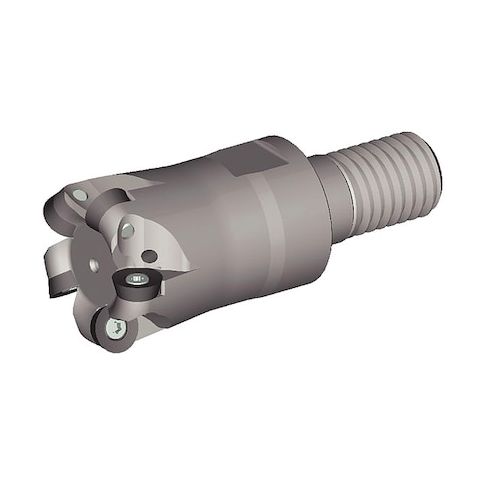

Indexable Profiling End Mill, M170 Series, High Speed Steel, 3.50mm Depth of Cut
The Widia M170 Series Indexable Profiling End Mill is a high-speed steel tool designed for high-performance machining. Its 3.50mm depth of cut and 15.00mm maximum cutting diameter enable efficient 3D profiling, face milling, helical milling, pocketing, and ramping operations. The tool's ball nose design facilitates side/shoulder milling and slotting applications. Its coolant-fed design ensures optimal cutting performance. Suitable for use in various industries, including aerospace, automotive, and medical, this end mill offers improved productivity, reduced cycle times, and extended tool life.
Top product features:
- Indexable Profiling End Mill design allows for 3D Profiling, Face Milling, Helical Milling, Pocketing, and Ramping capabilities
- The product features a Ball Nose design for Side/Shoulder Milling applications
- The tool is designed for Coolant Fed applications, allowing for efficient cutting through coolant
Top product applications:
- 3D Profiling
- Face Milling
- Helical Milling
Indexable Profiling End Mill, Max. Cutting Dia. 15.00mm, Depth of Cut 3.50mm, Shank Dia. 13.00mm, Overall Length 40.70mm, ANSI Code M170D015Z02M08RD07, Compatible Hardware Insert Screw M2.5x0.45 x 5 T7, Torx Wrench TX7, Connection Size M8, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 32 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.18
- Package Height: 1.18
- Package Weight: 0.81
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 22, 2026 6:04pm UTC
Category: Cutting Tools
