Indexable Profiling End Mill, M170 Series, High Speed Steel, 6.00mm Depth of Cut MPN:3930968
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3801014

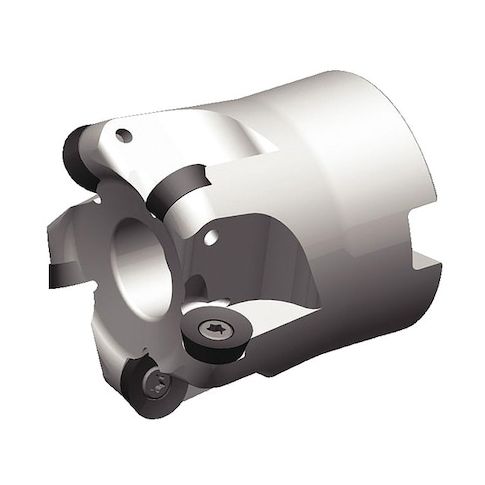

Indexable Profiling End Mill, M170 Series, High Speed Steel, 6.00mm Depth of Cut
The Widia M170 Series Indexable Profiling End Mill is a high-performance cutting tool designed for heavy-duty machining applications. With a 6.00mm depth of cut and maximum cutting diameter of 40.00mm, it excels in 3D profiling, face milling, helical milling, pocketing, and ramping operations. Its robust construction and coolant-fed design ensure efficient chip removal and extended tool life. Suitable for use in various industries, including aerospace, automotive, and general machining, this end mill offers improved productivity and surface finish quality. Its compact size and versatility make it an ideal choice for a wide range of machining applications.
Top product features:
- High Speed Steel construction for increased durability and cutting performance
- Coolant Fed design allows for efficient heat management and improved tool life
- Torx Driver compatibility enables secure and easy tool changes
Top product applications:
- 3D Profiling
- Face Milling
- Helical Milling
Indexable Profiling End Mill, Max. Cutting Dia. 40.00mm, Depth of Cut 6.00mm, Overall Length 40.00mm, ANSI Code M170D040Z04RD12, Compatible Hardware Heavy-Duty Clamp Screw, Insert Screw M3.5x0.6 x 7.7 T15, SHCS with Coolant Groove, Torx Driver, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.94
- Package Width: 1.97
- Package Height: 1.97
- Package Weight: 0.47
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 24, 2026 3:31pm UTC
Category: Cutting Tools
