Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.2000 in Depth of Cut MPN:5283481
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3800929
Indexable Profiling End Mill, M200 Series, High Speed Steel, 0.2000 in Depth of Cut

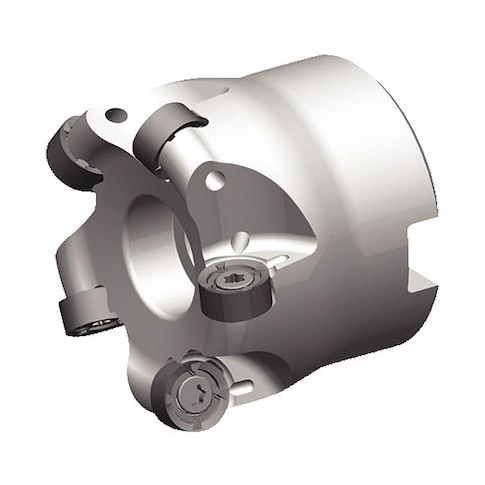

The Widia M200 Series Indexable Profiling End Mill is a high-speed steel cutting tool designed for efficient 3D profiling, face milling, pocketing, and side and face milling applications. With a maximum cutting diameter of 1-1/2 inches and a depth of cut of 0.2000 inches, this end mill excels in ball nose, slotting, and square end applications. Its compact design and anti-seize lubricant compatibility make it ideal for use in various industries. The M200 Series End Mill is a reliable and efficient solution for demanding machining tasks, providing precise cuts and extended tool life.
Top product features:
- High Speed Steel construction for improved tool life and durability
- Cutting Dia. up to 1-1/2 in for versatility in various applications
- Coolant Fed Through design for efficient heat dissipation and improved cutting performance
Top product applications:
- 3D Profiling
- Face Milling
- Pocketing
Indexable Profiling End Mill, Max. Cutting Dia. 1-1/2 in, Depth of Cut 0.2000 in, Overall Length 1.5700 in, ANSI Code M200D150Z03S050RN10, Compatible Hardware Anti-Seize Lubricant, Hardware S422, Insert Screw M3.5x0.6 x 8.3 T15, Screw 1/4 In.-28 x 3/4 LG Coolant, Torx Wrench TX15, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.45
- Package Width: 7.09
- Package Height: 3.35
- Package Weight: 0.46
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on April 17, 2026 1:57am UTC
Category: Cutting Tools
