Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.32mm Depth of Cut MPN:5416345
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3799039

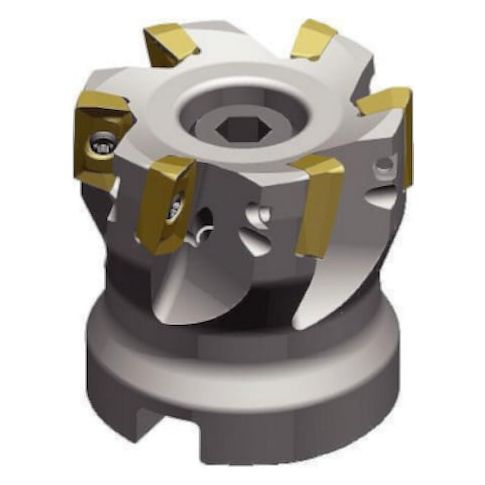

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.32mm Depth of Cut
The Widia VSM11 Series Indexable Profiling End Mill is a high-speed steel cutting tool designed for a variety of machining applications. Its 11.32mm depth of cut and 50mm overall length make it ideal for face milling, helical milling, and pocketing operations. The tool's coolant-fed design and compatible hardware coolant screw assembly ensure efficient chip removal and extended tool life. With its versatility and reliability, this end mill is suitable for use in blank, side, and face milling, as well as square end and slotting applications. Its compact design and easy handling make it a valuable addition to any machining operation.
Top product features:
- Indexable Profiling End Mill design allows for face milling, helical milling, pocketing, and ramping applications
- Insert screw M2.5x0.45 x 5.9 T8 provides secure attachment for inserts
- Coolant fed design allows for coolant to flow through the tool for improved cutting performance
Top product applications:
- Face Milling
- Helical Milling
- Pocketing
Indexable Profiling End Mill, Depth of Cut 11.32mm, Overall Length 50.00mm, ANSI Code VSM11D100Z09S032XD11, Compatible Hardware Coolant Screw Assembly M16, Insert Screw M2.5x0.45 x 5.9 T8, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.75
- Package Width: 11.81
- Package Height: 3.94
- Package Weight: 3.94
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 22, 2026 5:48pm UTC
Category: Cutting Tools
