Indexable Profiling End Mill, M1200 Series, High Speed Steel, 4.70mm Depth of Cut MPN:4136865
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3798689

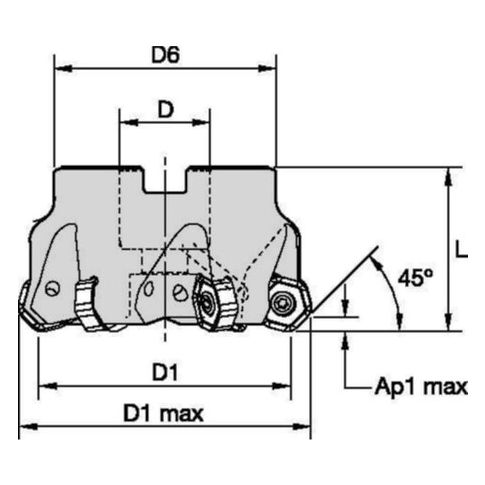

Indexable Profiling End Mill, M1200 Series, High Speed Steel, 4.70mm Depth of Cut
The Widia M1200 Series Indexable Profiling End Mill is a high-speed steel cutting tool designed for precision and efficiency. Suitable for face milling, side milling, and side/shoulder milling applications, this end mill boasts a maximum cutting diameter of 56.76mm and a depth of cut of 4.70mm. Its compact design and ease of use make it ideal for a variety of industries, including aerospace, automotive, and medical manufacturing. With a lead time of 67 days and a minimum order quantity of 1, this end mill is perfect for production runs of all sizes.
Top product features:
- Indexable Profiling End Mill allows for Face Milling, Side and Face Milling, and Side/Shoulder Milling with an eased chamfer.
- The product is designed for use with coolant, allowing for coolant-fed cutting.
- The mill features an insert screw with a M4x0.7 x 10 T15 thread, compatible with a Torx driver.
Top product applications:
- Face Milling
- Side and Face Milling
- Side/Shoulder Milling: Eased Chamfer
Indexable Profiling End Mill, Max. Cutting Dia. 56.76mm, Depth of Cut 4.70mm, Overall Length 40.00mm, ANSI Code M1200HD050Z05HN07, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 67 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.84
- Package Width: 7.09
- Package Height: 3.15
- Package Weight: 0.74
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 21, 2026 9:55pm UTC
Category: Cutting Tools
