Indexable Profiling End Mill, SuperFeed Series, High Speed Steel, 1/4 in Depth of Cut MPN:5363251
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3797532

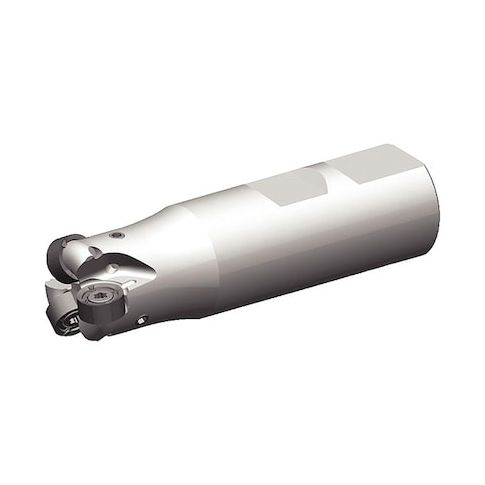

Indexable Profiling End Mill, SuperFeed Series, High Speed Steel, 1/4 in Depth of Cut
The Widia Indexable Profiling End Mill, SuperFeed Series, is a high-speed steel cutting tool designed for efficient face milling and side/shoulder milling applications. Its 1/4 in depth of cut and 1 in shank diameter provide precise control and stability in a variety of machining operations. The SuperFeed feature allows for easy adjustment of the cutting tool to optimize performance and extend tool life. With a long overall length of 4-1/2 in, this end mill is ideal for use in automotive, aerospace, and other industries where precision and speed are critical. Its durability and versatility make it a valuable addition to any machining operation.
Top product features:
- Indexable Profiling End Mill design allows for the removal of material in a profiling operation
- Superfeed Adjust Screw enables adjustable feed rates to optimize cutting performance
- Coolant Fed Coolant Through design allows for the efficient removal of heat and debris during machining operations
Top product applications:
- Face Milling
- Side/Shoulder Milling: Square End
- Coolant Fed Coolant Through
Indexable Profiling End Mill, Depth of Cut 1/4 in, Shank Dia. 1 in, Overall Length 4-1/2 in, ANSI Code WSSEM2005RH, Compatible Hardware Differential Screw 10-32 x 500, Superfeed Adjust Screw 10-32, Superfeed Barrel Wedge 10-32 l, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.43
- Package Width: 5.51
- Package Height: 3.54
- Package Weight: 0.01
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on April 4, 2026 4:00pm UTC
Category: Cutting Tools
