Indexable Profiling End Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut MPN:4130534
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3796631
Indexable Profiling End Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut
The Widia M1200 Series Indexable Profiling End Mill is a high-speed steel cutting tool designed for high-performance face milling, side milling, and shoulder milling applications. Its 3.50mm depth of cut and 135.70mm maximum cutting diameter enable precise and efficient material removal. The tool's design features a coolant-fed coolant through system, reducing heat and increasing tool life. Additionally, the insert screw and Torx driver ensure easy tool changes and maintenance. This tool is ideal for use in aerospace, automotive, and general machining industries where high precision and speed are required.
Top product features:
- Indexable Profiling End Mill features:
- It is designed for face milling, side, and shoulder milling applications.
- It has a coolant fed coolant through design to improve cutting performance.
Top product applications:
- Face Milling
- Side and Face Milling
- Side/Shoulder Milling

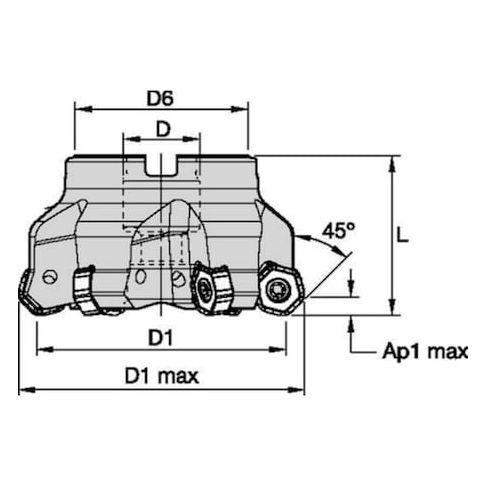

Indexable Profiling End Mill, Max. Cutting Dia. 135.70mm, Depth of Cut 3.50mm, Overall Length 60.45mm, ANSI Code M1200D500Z08S150HN07, Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 59 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.16
- Package Width: 11.22
- Package Height: 3.74
- Package Weight: 6.31
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 30, 2026 3:29pm UTC
Category: Cutting Tools
