Indexable Profiling End Mill, M170 Series, High Speed Steel, 5.00mm Depth of Cut MPN:3934652
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3785529

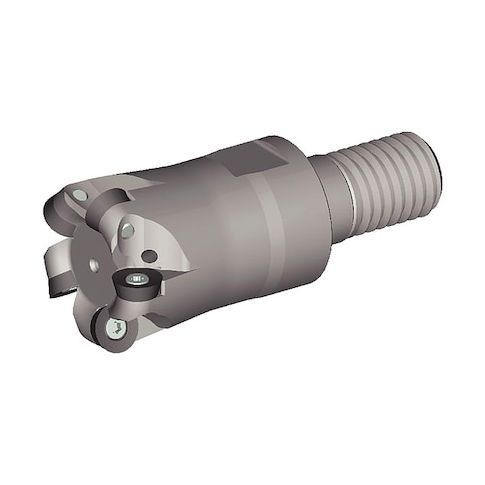

Indexable Profiling End Mill, M170 Series, High Speed Steel, 5.00mm Depth of Cut
The Widia M170 Series Indexable Profiling End Mill is a high-speed steel cutting tool designed for precision and efficiency. With a maximum cutting diameter of 42mm and a depth of cut of 5mm, this end mill is ideal for 3D profiling, face milling, helical milling, pocketing, and ramping applications. Its ball nose design enables smooth cutting and reduced vibration, while the coolant-fed design keeps the cutting area cool and clean. Suitable for use with a Torx driver and M16 connection, this end mill is perfect for a variety of industries, including aerospace, automotive, and general machining.
Top product features:
- High Speed Steel construction for durability and long tool life
- Capable of 3D Profiling, Face Milling, Helical Milling, Pocketing, and Ramping operations
- Coolant Fed design allows for efficient coolant flow through the tool for improved cutting performance and reduced heat buildup
Top product applications:
- 3D Profiling
- Face Milling
- Helical Milling
Indexable Profiling End Mill, Max. Cutting Dia. 42.00mm, Depth of Cut 5.00mm, Shank Dia. 29.00mm, Overall Length 69.50mm, ANSI Code M170D042Z06M16RD10, Compatible Hardware Insert Screw M3.5x0.6 x 7.7 T15, Torx Driver, Connection Size M16, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 35 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.12
- Package Width: 1.97
- Package Height: 1.97
- Package Weight: 0.63
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on April 10, 2026 10:05am UTC
Category: Cutting Tools
