Indexable Profiling End Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut MPN:3958008
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3784689
Indexable Profiling End Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut
The Widia M1200 Series Indexable Profiling End Mill is a high-speed steel cutting tool designed for face milling, side milling, and side/shoulder milling applications. Its 108.60mm maximum cutting diameter and 3.50mm depth of cut allow for efficient and precise material removal. The tool's coolant-fed design enables optimal cooling and lubrication, reducing heat buildup and extending tool life. With its ease of use and versatility, this end mill is suitable for a wide range of industries, including aerospace, automotive, and general machining. Its compact design and ease of handling make it an ideal choice for machinists seeking high-quality results with minimal hassle.
Top product features:
- Indexable Profiling End Mill allows for face milling, side milling, and side/shoulder milling.
- Eased chamfer design enables smooth transitions and reduced risk of tool breakage.
- Coolant through design enables efficient cooling and improved tool life.
Top product applications:
- Face Milling
- Side and Face Milling
- Side/Shoulder Milling: Eased Chamfer

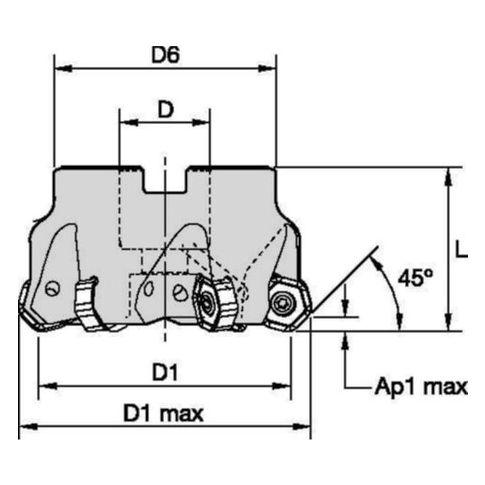

Indexable Profiling End Mill, Max. Cutting Dia. 108.60mm, Depth of Cut 3.50mm, Overall Length 50.00mm, ANSI Code M1200D100Z12HN07, Compatible Hardware Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 67 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.35
- Package Width: 11.22
- Package Height: 3.35
- Package Weight: 5.09
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 22, 2026 6:08pm UTC
Category: Cutting Tools
