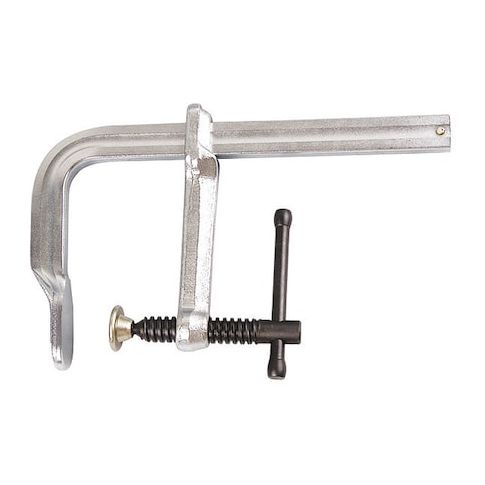

12 in Bar Clamp, Steel Handle and 5 1/2 in Throat Depth MPN:10D559

The WESTWARD - 10D559 is a medium-duty Bar Clamp designed for woodworking applications. The bar clamp features a long rigid steel bar with a fixed head on one end and a sliding head on the other, functioning to lock and tighten in order to apply pressure across a workpiece. This clamp is most useful during assembly processes, metalworking, and woodworking, as it aids in holding parts squarely for procedures such as gluing, fastening, or machining.

Key Features of the WESTWARD - 10D559 Bar Clamp:

• Bar Material and Size: The bar, crafted from steel and with dimensions 1x15/32 inches, imparts durability and strength to the clamp.
• Handle Style and Material: The steel sliding T handle style provides improved grip and control when pressure is applied.
• Clamping Capacity and Force: The clamp boasts a maximum clamping capacity of 12 inches, along with the capability to exert up to 1,300 lbs of clamping force.
• Jaw Pad Specifications: The jaw pad, fitted with a swivel type and a width of 1 1/4 inches, ensures broad surface contact and secure clamping.
• Specific Dimensions: The handle length is 4 23/32 inches, and the clamp includes a throat depth of 5 1/2 inches, making it effective at reaching into the workpiece.
• Sliding Mechanism: The Bar Slide sliding mechanism ensures smooth motion of the adjustable jaw for precise positioning.
