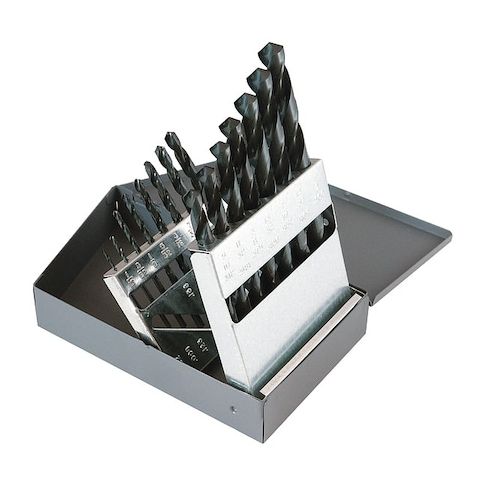

Jobber Drill Set, 3/8 Shank, 15 PC, HSS MPN:5UDP3

The WESTWARD 5UDP3 is a jobber-length drill bit set comprising 15 pieces with sizes ranging from 1/16 inch to 1/2 inch in fractional increments. Manufactured from high speed steel with a material grade as specified, these drill bits feature a conventional point type with a right-hand spiral direction. Intended for drilling applications in cast iron and steel (ISO material codes K and P), the set includes a metal drill index for organization. The drill bits have a two-flute spiral design and straight shanks, with overall lengths varying by size from 1 7/8 inches up to 6 inches.

Key Features:

• - Drill bit sizes included: 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
• - Jobber-length drill bits for general-purpose machining applications.
• - Material: High speed steel with a black oxide finish
• - Point angle: 135 degrees with conventional point type
• - Flute: 2-flute spiral with helix angles from 21 to 34 degrees
• - Shank diameter: 1/6 inch, straight shank type
• - Spiral direction: Right hand cutting
• - Overall lengths range from 1 7/8 inches to 6 inches depending on size
• - Primary material application ISO codes: K and P (cast iron and steel)
• - Includes a metal drill index for storage
