Reg M1 Series Flowmeterstyle MPN:M1-346-15FM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
505-312-M1-346-15FM
Reg M1 Series Flowmeterstyle MPN:M1-346-15FM

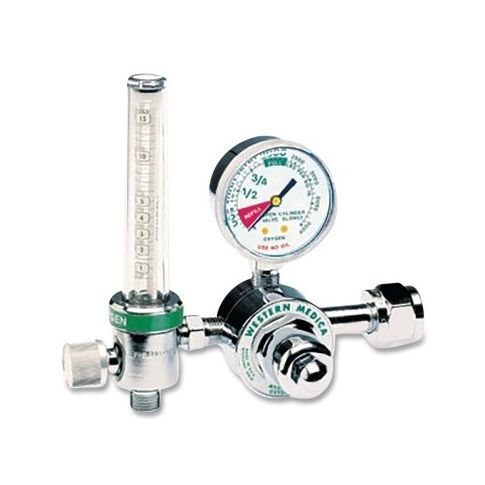

M1 Series Flowmeter Regulator, Medical Air, 1 to 15 LPM, 3000 psi Inlet, CGA 346 Nut and Nipple, DISS 1240 Outlet
Additional Information
- UPC Code: 698944088118
- Country of Origin: UNITED STATES
- Special Order Item: No
- State Restricted: YES
- Minimum Order Quantity: 1
- Minimum Order UOM: EA
- Cost UOM: EA
- UOM Conversion: 1 EA = 1 EA
- Item Weight: .7
- Item Length: 10
- Item Width: 7
- Item Height: 6
- Item Cube: 420
Attributes
- Diaphragm Material: Neoprene
- Flow Range: 1 to 15 LPM
- Gas Type: Medical Air
- Gauge Size: 2 in
- Includes: Plastic Swivel Hose Barb
- Inlet Connection: CGA 346 Nut and Nipple
- Inlet Pressure [Max]: 3000 psi
- Outlet Type: DISS 1240
- Type: Single-Stage
Features
- Chrome-plated brass body with all brass high-pressure chamber
- Internal reseating relief valve protects against over-pressurization
- Sintered filter for additional safety and to extend regulator life
- Polycarbonate inner and outer tubes provide greater accuracy and durability
- 15 LPM Oxygen models provide 75 LPM flood minimum
Product info last updated on June 19, 2026 5:16pm UTC
Category: MEASURING and LEVELING TOOLS OTHER
