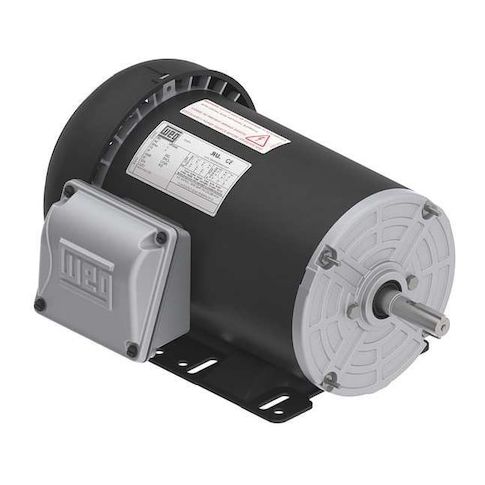

Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 3475 rpm Nameplate RPM MPN:.2536ES3E56-S
Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 3475 rpm Nameplate RPM
This 1/4 HP three-phase general purpose motor is designed for a wide range of applications, including commercial and industrial use. Its totally enclosed fan cooled (TEFC) design provides reliable operation in harsh environments, while its rigid base mounting type ensures secure installation. With a nameplate RPM of 3475 and a service factor of 1.15, this motor is suitable for continuous duty applications. Its high efficiency of 57.5% and CSA/UL certification make it a reliable choice for use in a variety of industries, including manufacturing, food processing, and HVAC. Ideal for applications requiring high torque and low vibration.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pump
- Conveyor
- Fan
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 3475 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.01-0.914/0.457 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 57.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.50
- Package Height: 9.30
- Package Weight: 21.74
Product info last updated on February 5, 2026 6:19am UTC
Category: Motors
