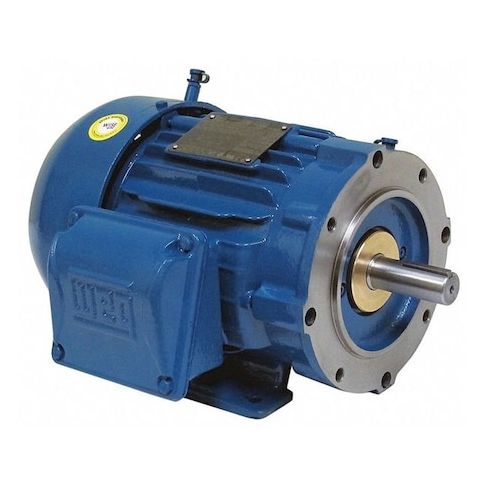

Three-Phase General Purpose Motor, 15 HP, 254TC Frame, 575V AC Voltage, 3530 rpm Nameplate RPM MPN:01536ET3H254TC-W22
Three-Phase General Purpose Motor, 15 HP, 254TC Frame, 575V AC Voltage, 3530 rpm Nameplate RPM
This 15 HP three-phase general purpose motor is designed for a wide range of industrial applications, including manufacturing, oil and gas, and food processing. Its totally enclosed fan cooled (TEFC) design ensures efficient cooling and protection from harsh environments. With a high efficiency rating of 91% and a continuous duty rating, this motor provides reliable performance and energy savings. Its rigid base mounting and cast iron frame ensure stability and durability. Suitable for applications requiring high torque and low vibration, this motor is ideal for pumps, fans, and other machinery that operate at high speeds.
Top product features:
- Three-Phase General Purpose Motor design provides a reliable power source for various applications.
- Totally Enclosed Fan Cooled Motor Enclosure protects the motor from environmental factors and ensures efficient operation.
- Ball Motor Bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Industrial Process Control
- Pumping Stations
- Conveyor Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 3530 rpm, Frame 254TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 20.00
- Package Height: 21.00
- Package Weight: 154.00
Product info last updated on March 30, 2026 2:41am UTC
Category: Motors
