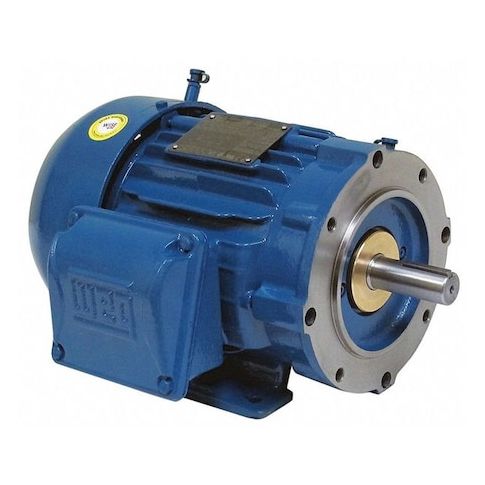

Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM MPN:02018ET3H256TC-W22
Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM
This 20 HP three-phase motor is designed for general purpose applications, offering high efficiency and reliability. With a nameplate RPM of 1765 and a frame size of 256TC, it's suitable for a wide range of industrial uses, including pumps, fans, and conveyor systems. The motor's cast iron frame and ball bearings ensure durability and long lifespan, while its totally enclosed fan-cooled design provides excellent protection against environmental factors. Suitable for continuous duty operation, this motor is an ideal choice for applications requiring high power and efficiency, such as manufacturing, material handling, and HVAC systems.
Top product features:
- Three-phase operation provides balanced power distribution
- Totally enclosed fan cooled motor enclosure design for improved heat dissipation and reduced maintenance
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Industrial Automation
- Pumping Stations
- Oil and Gas Industry
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1765 rpm, Frame 256TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.00
- Package Width: 20.00
- Package Height: 21.00
- Package Weight: 163.00
Product info last updated on March 15, 2026 2:48pm UTC
Category: Motors
