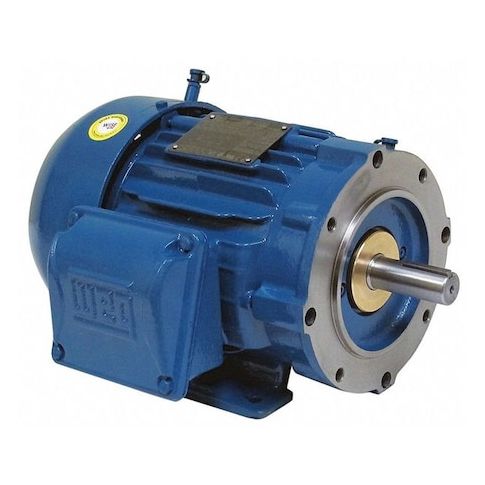

Three-Phase General Purpose Motor, 25 HP, 284TSC Frame, 575V AC Voltage, 3545 rpm Nameplate RPM MPN:02536ET3H284TSC-W22
Three-Phase General Purpose Motor, 25 HP, 284TSC Frame, 575V AC Voltage, 3545 rpm Nameplate RPM
This 25 HP three-phase general purpose motor is designed for a variety of industrial applications, including manufacturing, material handling, and oil and gas operations. With a high-efficiency design and cast iron frame, it provides reliable and durable performance in demanding environments. Its totally enclosed fan cooled design ensures quiet and efficient operation, while the ball bearings provide smooth and long-lasting motor shaft rotation. Suitable for continuous duty, this motor is ideal for applications requiring high torque and speed, such as conveyor systems, pumps, and fans. Its compact size and rugged construction make it a versatile solution for a range of industries.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and efficient cooling system.
- Ball Motor Bearings ensure smooth and reliable operation.
- Continuous Duty operation allows for sustained performance over extended periods.
Top product applications:
- Industrial conveyor systems
- Pumping stations
- Textile manufacturing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 3545 rpm, Frame 284TSC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 22.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.00
- Package Width: 22.00
- Package Height: 23.00
- Package Weight: 265.00
