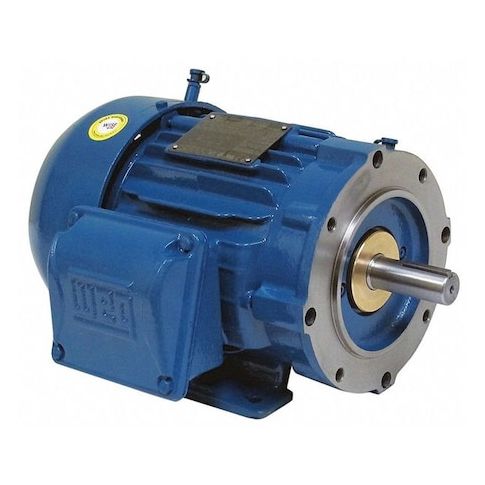

Three-Phase General Purpose Motor, 25 HP, 284TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM MPN:02518ET3H284TC-W22
Three-Phase General Purpose Motor, 25 HP, 284TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM
This 25 HP three-phase general purpose motor is designed for heavy-duty applications requiring high power and reliability. Suitable for use in industrial settings, it features a totally enclosed fan cooled motor enclosure to protect against dust and moisture. With a nameplate RPM of 1765, this motor is ideal for applications such as pumps, conveyor systems, and fans. Its high efficiency rating of 93.6% and continuous duty design make it a cost-effective solution for long-term operations. Meets CE, CSA, NOM, and UL standards for safe and reliable performance.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Industrial Pump Systems
- Manufacturing Machinery
- Material Handling Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1765 rpm, Frame 284TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.00
- Package Width: 22.00
- Package Height: 23.00
- Package Weight: 258.00
Product info last updated on February 22, 2026 5:46am UTC
Category: Motors
