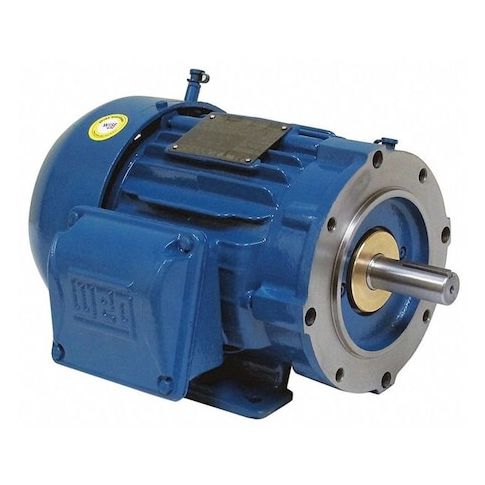

Three-Phase General Purpose Motor, 30 HP, 286TSC Frame, 575V AC Voltage, 3535 rpm Nameplate RPM MPN:03036ET3H286TSC-W22
Three-Phase General Purpose Motor, 30 HP, 286TSC Frame, 575V AC Voltage, 3535 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 3535 rpm, Frame 286TSC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 27.0 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.00
- Package Width: 22.00
- Package Height: 23.00
- Package Weight: 298.00
Product info last updated on January 22, 2026 1:00pm UTC
Category: Motors
