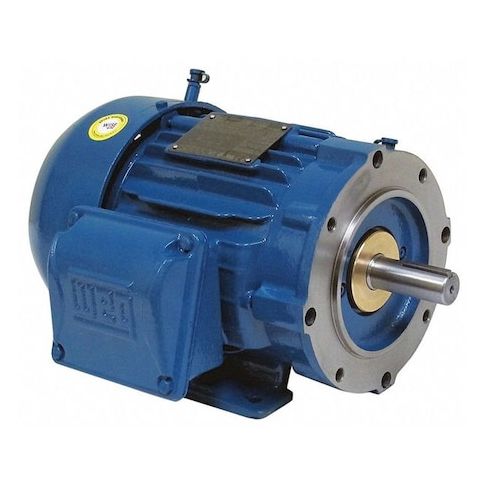

Three-Phase General Purpose Motor, 30 HP, 286TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM MPN:03018ET3H286TC-W22
Three-Phase General Purpose Motor, 30 HP, 286TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM
This 30 HP three-phase general purpose motor is designed for heavy-duty industrial applications, offering a reliable and efficient solution for powering machinery and equipment. With a nameplate RPM of 1765, it provides consistent speed and torque, while its rigid base and C-face motor mounting type ensure secure and stable operation. The motor's totally enclosed fan cooled design and cast iron frame provide excellent durability and protection against harsh environments. Suitable for a wide range of applications, including manufacturing, material handling, and oil and gas, this motor is a cost-effective and long-lasting solution for industrial power needs.
Top product features:
- Three-phase operation for efficient power transmission
- Totally Enclosed Fan Cooled Motor Enclosure Design for reliable operation in harsh environments
- Ball Motor Bearings for smooth and quiet operation
Top product applications:
- Pumps and compressors
- Industrial machinery and equipment
- Material handling systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1765 rpm, Frame 286TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 28.1 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.00
- Package Width: 22.00
- Package Height: 23.00
- Package Weight: 282.00
Product info last updated on February 16, 2026 11:00am UTC
Category: Motors
