Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 575V AC Voltage, 1, 770 Nameplate RPM MPN:02018OT3H256TC

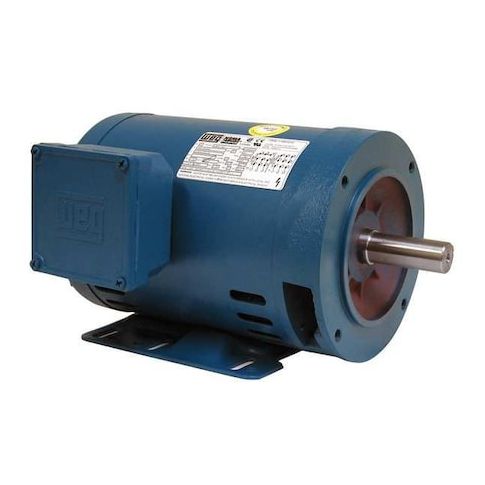

Three-Phase General Purpose Motor, 20 HP, 256TC Frame, 575V AC Voltage, 1, 770 Nameplate RPM
This 20 HP three-phase general purpose motor is designed for heavy-duty applications, including industrial processes and commercial use. Its 256TC frame and 575V AC voltage make it suitable for a wide range of industries. With a nameplate RPM of 1,770 and a service factor of 1.15, this motor can handle demanding loads and maintain efficiency. Its rigid base mounting and open drip-proof enclosure design provide durability and protection. Ideal for use in manufacturing, pumping, and material handling, this motor offers high efficiency and reliability, making it a valuable addition to any operation.
Top product features:
- Three-phase operation for increased power and efficiency
- Open drip-proof motor enclosure design for protection against dust and liquids
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Pumps
- High-Speed Fans
- Conveyors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 256TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 65 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.10
- Package Width: 20.20
- Package Height: 15.80
- Package Weight: 290.00
Product info last updated on February 27, 2026 10:58pm UTC
Category: Motors
