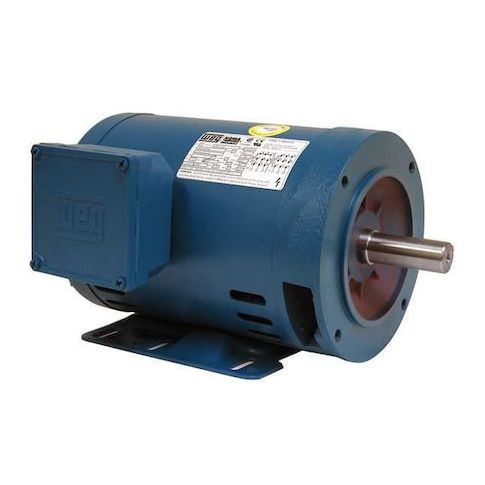

Three-Phase General Purpose Motor, 25 HP, 284TC Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:02518OT3E284TC-W40
Three-Phase General Purpose Motor, 25 HP, 284TC Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This high-efficiency, three-phase general purpose motor is designed for demanding industrial applications. With a 25 HP rating and 1,770 nameplate RPM, it provides reliable power for heavy-duty operations. The rugged 284TC frame and cast iron construction ensure durability in harsh environments. The motor's open drip-proof enclosure design and ball bearings minimize maintenance and reduce downtime. Suitable for applications such as pumps, fans, and conveyor systems, this motor offers high efficiency and continuous duty operation. Its compact size and robust design make it an ideal choice for a wide range of industrial settings, including manufacturing, processing, and material handling facilities.
Top product features:
- Three-phase design for efficient power distribution
- Open drip-proof motor enclosure for protection against dust and liquid splashes
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pump drives for industrial processes
- Conveyor systems for manufacturing facilities
- Air compressors for construction equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 1,770, Frame 284TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 59.0/29.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 22.50
- Package Height: 18.00
- Package Weight: 378.00
Product info last updated on February 4, 2026 11:48pm UTC
Category: Motors
