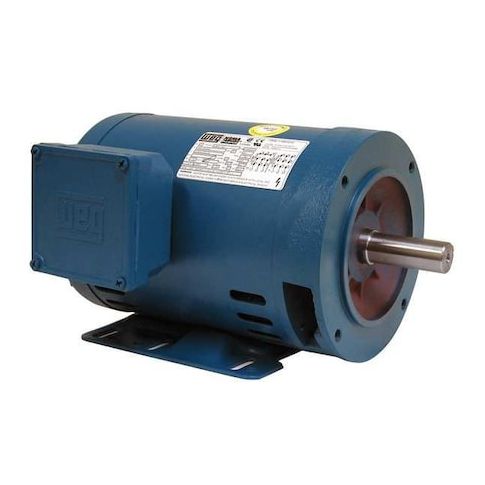

Three-Phase General Purpose Motor, 25 HP, 284TC Frame, 575V AC Voltage, 1, 770 Nameplate RPM MPN:02518OT3H284TC
Three-Phase General Purpose Motor, 25 HP, 284TC Frame, 575V AC Voltage, 1, 770 Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 1,770, Frame 284TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 70 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 65 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.30
- Package Width: 22.50
- Package Height: 17.80
- Package Weight: 378.00
Product info last updated on March 6, 2026 7:11pm UTC
Category: Motors
