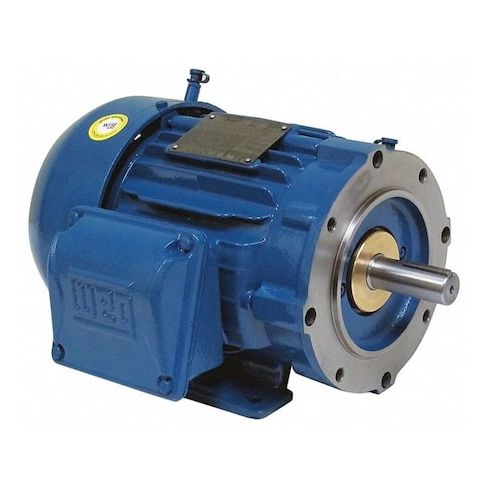

Three-Phase Hazardous Location Motor, 25 hp HP, 284TC Frame, 460V AC Voltage MPN:02518ST3QIE284TC-W22
Three-Phase Hazardous Location Motor, 25 hp HP, 284TC Frame, 460V AC Voltage
This heavy-duty three-phase motor is designed for severe duty applications in hazardous locations. With a 25 horsepower rating and 1,765 RPM, it provides reliable power for demanding tasks. The motor's totally enclosed fan-cooled design and rigid base mounting ensure efficient cooling and stability. Suitable for continuous duty cycles, it's ideal for use in industries such as oil and gas, chemical processing, and manufacturing. Its compact 284TC frame makes it easy to install in tight spaces, and its NEMA Design B rating ensures compliance with safety standards. Order now for fast shipping and get the power you need for your most challenging applications.
Top product features:
- Three-Phase Design for High-Power Applications
- Totally Enclosed Fan Cooled for Efficient Heat Dissipation
- NEMA Design B for Use in Hazardous Locations
Top product applications:
- Pump Applications
- High-Torque Applications
- Severe Duty Applications
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 29.5 A, 284TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, C-Face, NEMA Design B
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 31.50
- Package Height: 17.80
- Package Weight: 245.00
Product info last updated on March 11, 2026 7:23pm UTC
Category: Motors
