Three-Phase Hazardous Location Motor, 60 hp HP, 364-5T Frame, 460V AC Voltage MPN:06018ST3QIE364T-W22
Three-Phase Hazardous Location Motor, 60 hp HP, 364-5T Frame, 460V AC Voltage

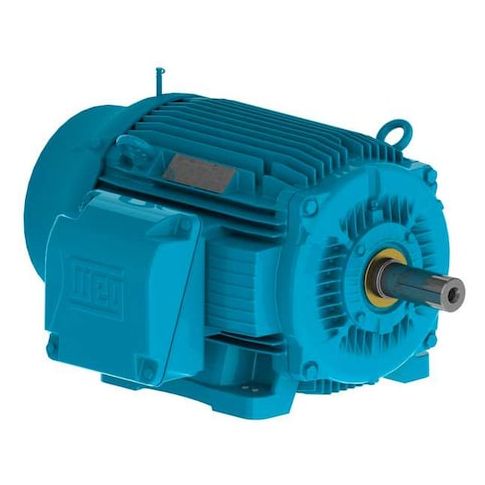

This three-phase hazardous location motor from Weg is designed for severe duty applications, delivering reliable performance in the most demanding environments. With a 60 hp rating and 1,800 RPM nameplate speed, it's ideal for use in facilities requiring high power and efficiency. The totally enclosed fan-cooled design and rigid base mounting ensure long motor life and easy installation. Suitable for continuous duty cycles, this motor is perfect for applications in industries such as oil and gas, chemical processing, and manufacturing. Its compact size and robust construction make it an excellent choice for space-constrained areas and heavy-duty operations.
Top product features:
- Three-phase design provides a more efficient and reliable power distribution system.
- Totally enclosed fan cooled design helps to prolong motor lifespan by reducing exposure to environmental contaminants.
- Continuous duty cycle capability allows for uninterrupted operation under heavy loads.
Top product applications:
- Pumping stations
- Industrial process control systems
- Oil and gas facilities
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 60 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 68.3 A, 364-5T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 45.30
- Package Width: 33.50
- Package Height: 30.70
- Package Weight: 869.00
Product info last updated on February 9, 2026 8:14pm UTC
Category: Motors
