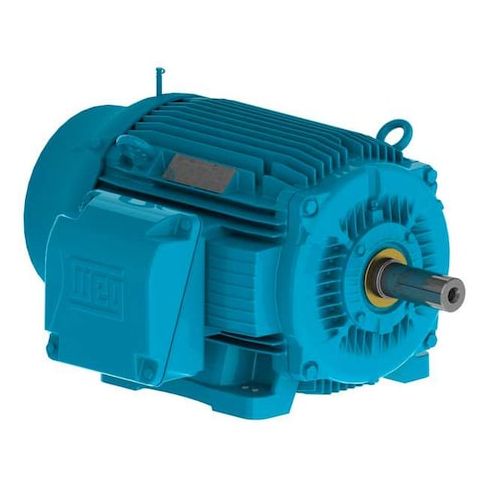

Three-Phase Hazardous Location Motor, 100 hp HP, 404-5TS Frame, 460V AC Voltage MPN:10036ST3QIE405TS-W22
Three-Phase Hazardous Location Motor, 100 hp HP, 404-5TS Frame, 460V AC Voltage
This three-phase hazardous location motor from Weg is designed for severe duty applications, featuring a 100 hp rating and 3,600 RPM nameplate speed. Suitable for use in environments with hazardous conditions, it provides reliable operation and long service life. The motor is totally enclosed fan cooled, ensuring efficient cooling and minimizing maintenance. Its rigid base mounting and NEMA Design B design make it easy to integrate into existing systems. Ideal for use in industries such as oil and gas, chemical processing, and manufacturing, this motor offers a cost-effective solution for applications requiring high power and reliability.
Top product features:
- Three-Phase Design for efficient power distribution
- Totally Enclosed Fan Cooled Enclosure for improved heat dissipation and reduced maintenance
- Severe Duty Capability for high-performance operation in demanding environments
Top product applications:
- Heavy Industry Equipment
- Pulp and Paper Mills
- Chemical Processing Plants
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 100 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 110.0 A, 404-5TS Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 45.30
- Package Width: 33.50
- Package Height: 30.70
- Package Weight: 1045.00
Product info last updated on February 5, 2026 11:31pm UTC
Category: Motors
