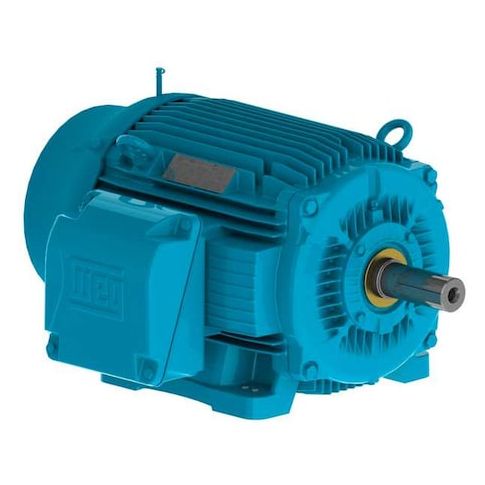

Three-Phase Hazardous Location Motor, 150 hp HP, 444-5TS Frame, 460V AC Voltage MPN:15036ST3QIE445TS-W22
Three-Phase Hazardous Location Motor, 150 hp HP, 444-5TS Frame, 460V AC Voltage
This three-phase hazardous location motor is designed for severe duty applications, offering reliable performance in demanding environments. With a 150 horsepower rating and 3,570 RPM, it's suitable for a wide range of industrial uses, including manufacturing, oil and gas, and mining. The motor's totally enclosed fan-cooled design ensures efficient cooling and reduced maintenance. Its NEMA Design B rating and 1.15 service factor make it a versatile solution for continuous duty cycles. Applications include pumps, compressors, and conveyor systems, where high torque and reliability are critical. Its compact 444-5TS frame and rugged construction make it an ideal choice for harsh locations.
Top product features:
- Three-Phase Operation
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Pumps in hazardous locations
- Oil and gas refineries
- Chemical processing plants
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 150 hp HP, Nameplate RPM 3,570 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 163.0 A, 444-5TS Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 65 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 55.10
- Package Width: 42.20
- Package Height: 37.30
- Package Weight: 1709.00
Product info last updated on March 13, 2026 1:04pm UTC
Category: Motors
